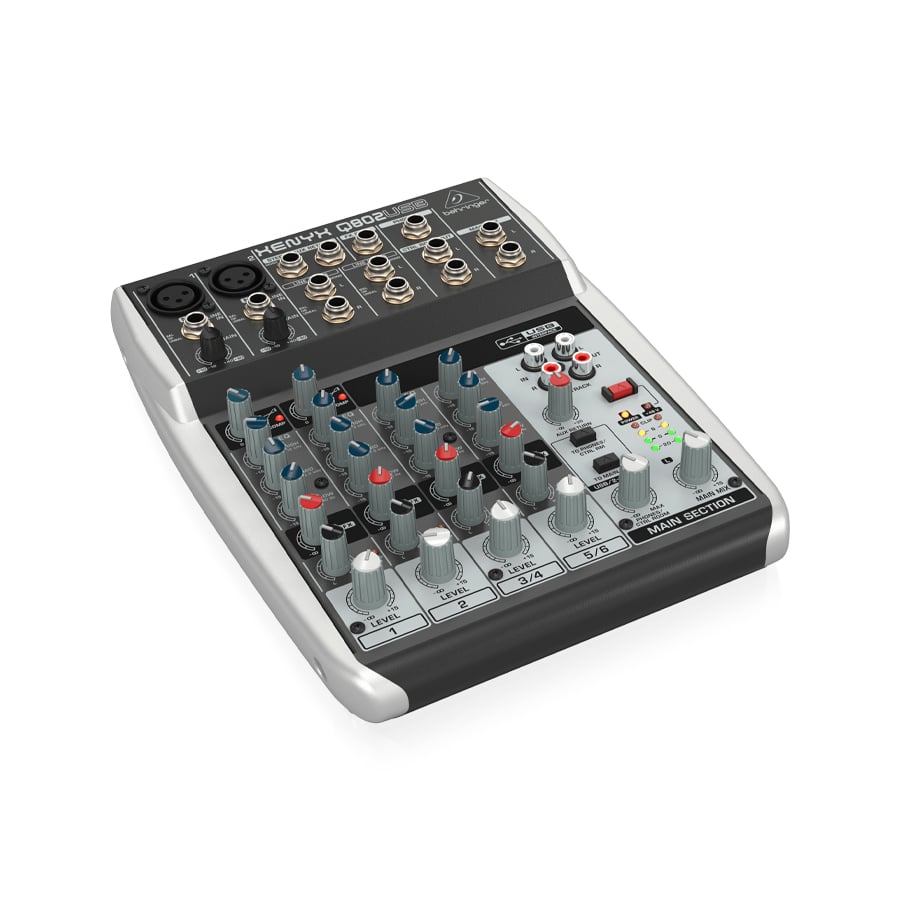

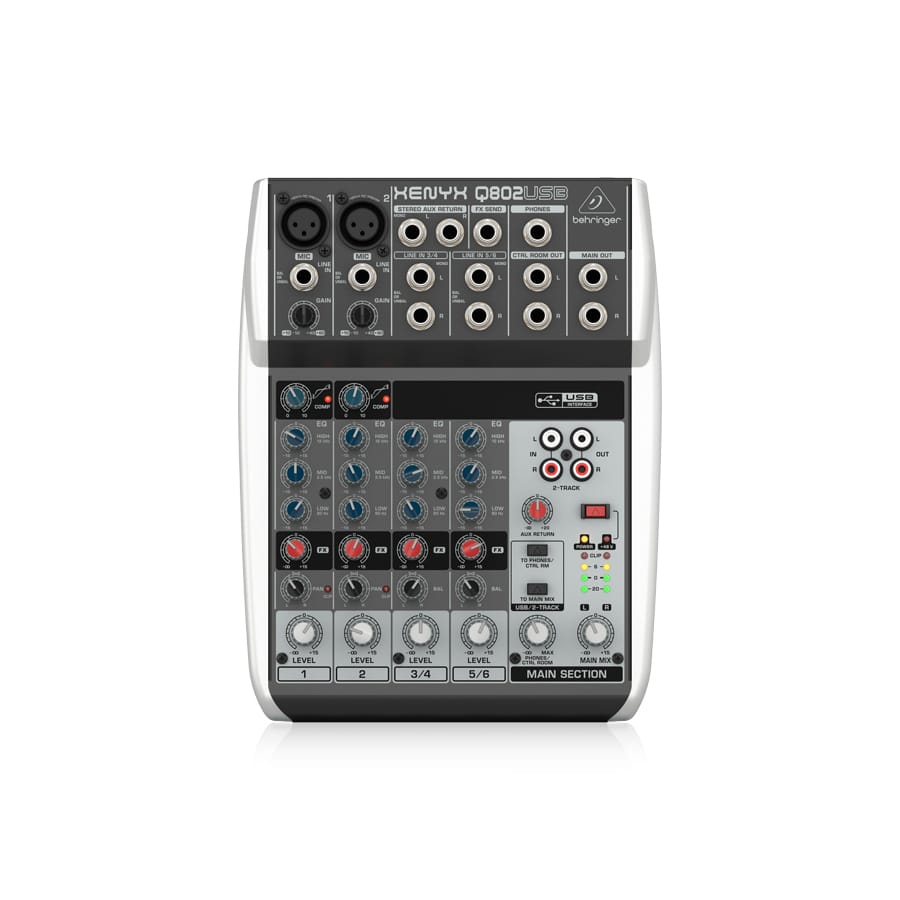

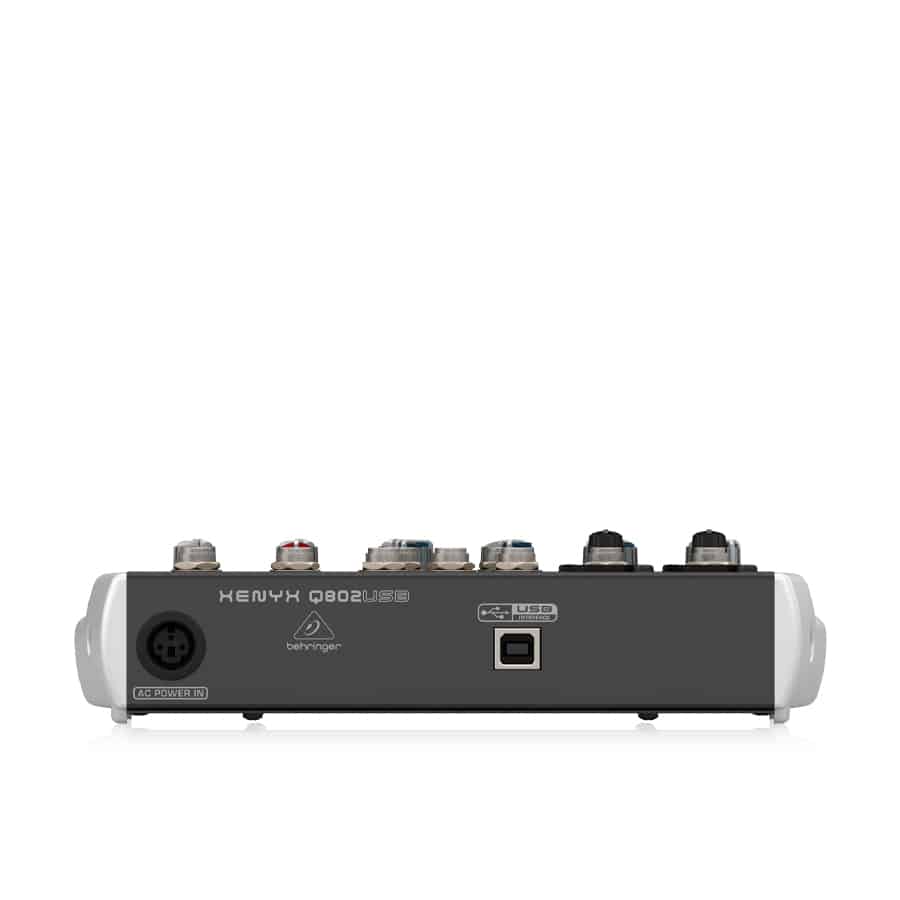

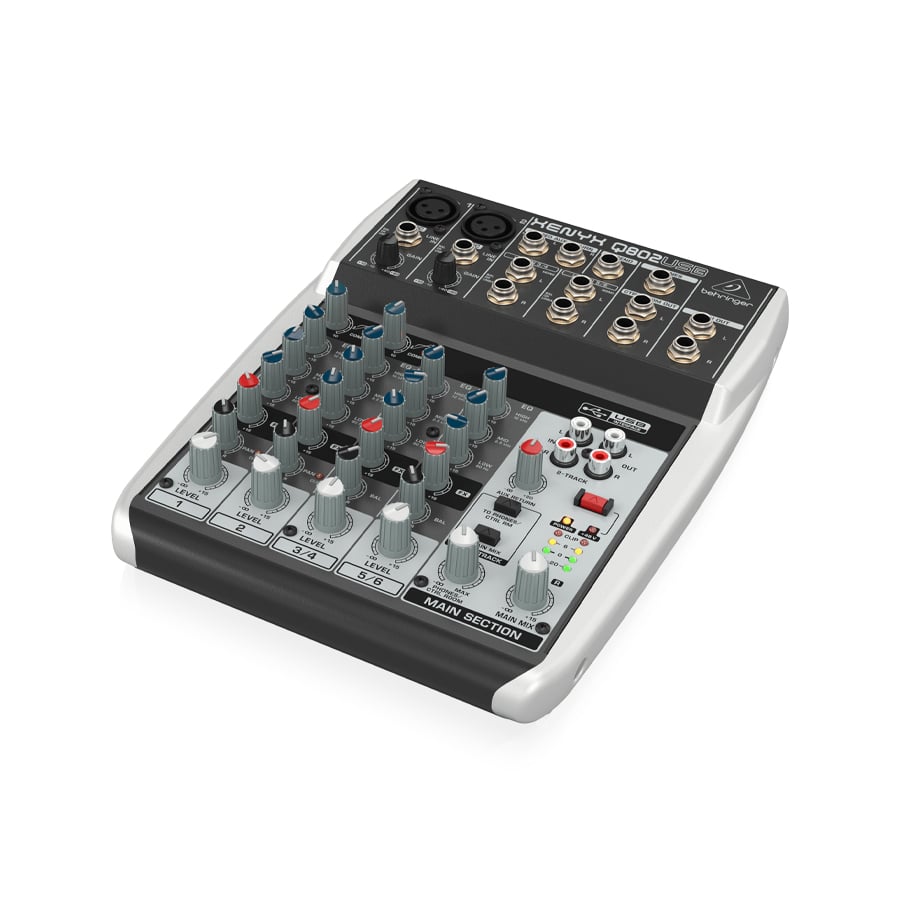

Behringer XENYX Q802USB มิกเซอร์ อนาล็อก

Q1202USB Q1002USB Q802USB Q502USB

Mono Inputs

Microphone Inputs

• Type
  • XLR connector, balanced, discrete input circuit

Mic E.I.N. (20 Hz – 20 kHz)

• @ 0 Ω Source resistance
  • -134 dB / 136 dB A-weighted
• @ 50 Ω Source resistance
  • -131 dB / 133 dB A-weighted
• @ 150 Ω Source resistance
  • -129 dB / 131 dB A-weighted
• Frequency Response (-1 db)
  • <10 Hz – 150 kHz (-1 db)
• Frequency Response (-3 db)
  • <10 Hz – 200 kHz (-3 db)
• Gain range
  • +10 dB to +60 dB
• Max. input level
  • +12 dBu @ +10 dB Gain
• Impedance
  • 1.9 kΩ balanced / 1.9 kΩ balanced / 1.9 kΩ balanced / 1.4 kΩ balanced
• Signal-to-noise ratio
  • 110 dB A-weighted (0 dBu In @ +22 dB Gain)
• Distortion (THD+N)
  • 0.005% / 0.004% A-weighted

Line Inputs

• Type
  • ¼” TRS connector, balanced
• Impedance
  • 20 kΩ balanced, 10 kΩ unbalanced
• Gain range
  • -10 dB to +40 dB
• Max. input level
  • +22 dBu @ 0 dB Gain

Stereo Inputs

• Type
  • 2 x ¼” TRS connectors, balanced
• Impedance
  • 20 kΩ balanced, 10 kΩ unbalanced
• Gain range
  • -20 dB to + 20 dB
• Max. input level
  • +22 dBu

CD/Tape Inputs

• Type
  • RCA connector
• Impedance
  • 18 kΩ
• Max. input level
  • +22 dBu

Equalizer

• Low
  • 80 Hz / ±15 dB
• Mid
  • 2.5 kHz / ±15 dB
• High
  • 12 kHz / ±15 dB

Aux Sends

• Type
  • ¼ ” TRS connector, balanced
• Impedance
  • 120 Ω
• Max. output level
  • +22 dBu

Aux Returns

• Type
  • ¼ ” TRS connector, balanced
• Impedance
  • 20 kΩ balanced / 10 kΩ unbalanced
• Max. input level
  • +22 dBu

Main Outputs

• Type
  • ¼” TRS connector, balanced
• Impedance
  • 120 Ω balanced
• Max. output level
  • +22 dBu

Control Room Outputs

• Type
  • ¼” TRS connector, balanced
• Impedance
  • approx. 120 Ω
• Max. output level
  • +22 dBu

Phones Output

• Type
  • ¼” TRS connector, unbalanced
• Max. output level
  • +21 dBu / 150 Ω (+25 dBm)

CD/Tape Outputs

• Type
  • RCA connector, unbalanced
• Impedance
  • 1 kΩ
• Max. output leve
  • +22 dBu

Main Mix System Data (Noise)

• Main mix @ -∞, channel fader @ -∞
  • -106 dB / -109 dB A-weighted
• Main mix @ 0 dB, channel fader @ -∞
  • -93 dB / -96 dB A-weighted / -93 dB / -96 dB A-weighted / -92 dB / -95 dB A-weighted / -95 dB / -98 dB A-weighted
• Main mix @ 0 dB, channel fader @ 0 dB
  • -84 dB / -87 dB A-weighted

Power Supply

• Power consumption
  • 20 W / 13 W / 13 W / 13 W

USA/Canada    120 V~, 60 Hz

• Adapter
  • MXUL5 / MXUL3 / MXUL3 / MXUL3

Europe/U.K./Australia     230 V~, 50 Hz

• Adapter
  • MXEU5 / MXEU3 / MXEU3 / MXEU3

China    220 V~, 50 Hz

• Adapter
  • MXCCC5 / MXCCC3 / MXCCC3 / MXCCC3

Korea    220 V~, 60 Hz

• Adapter
  • MXKR5 / MXKR3 / MXKR3 / MXKR3

Japan    100 V~, 50/60 Hz

• Adapter
  • MXJP5 / MXJP3 / MXJP3 / MXJP3

USB

• Connector
  • Type B
• Sample Rate
  • 48 kHz

Physical/Weight

• Dimensions (W x D x H)
  • 9.8 x 9.8 x 2.0″ 250 x 248 x 50 mm / 7.7 x 9.8 x 2.0″ 195 x 248 x 50 mm / 7.7 x 9.8 x 2.0″ 195 x 248 x 50 mm / 5.4 x 7.2 x 1.8″ 138 x 184 x 46 mm
• Weight (Net)
  • 3.3 lbs / 1.5 kg 2.4 lbs / 1.1 kg 2.4 lbs / 1.1 kg 1.3 lbs / 0.6 kg

Data Sheet
