MIC ARRAY |
|
6 microphones |
|
Frequency response |
20 Hz to 15 kHz |
Pickup range |
6 m (20 ft) |
Static and adaptive dynamic beam-forming |
|
3 exclusion zones |
|
Stereo acoustic echo cancellation |
|
Noise suppression |
|
|
|
VIDEO |
|
Supported resolutions |
UHD 2160p (4K); 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps) |
Encoding |
H.264, M-JPEG |
|
|
AUDIO |
|

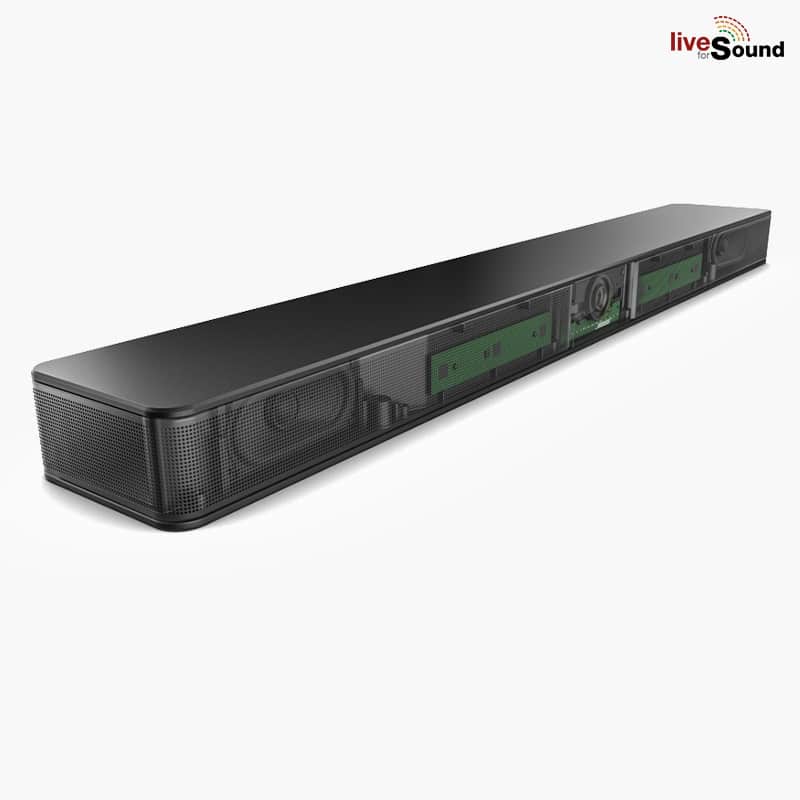

Stereo loudspeakers, ported enclosure |
|
Amplifier power |
20 W/ch, <0.3% distortion over FR |
Max SPL/Power |
89 dB SPL @ 1 m, IEC 60268-5 |
Frequency response |
85 Hz – 20 kHz (-10 dB) |
|
|

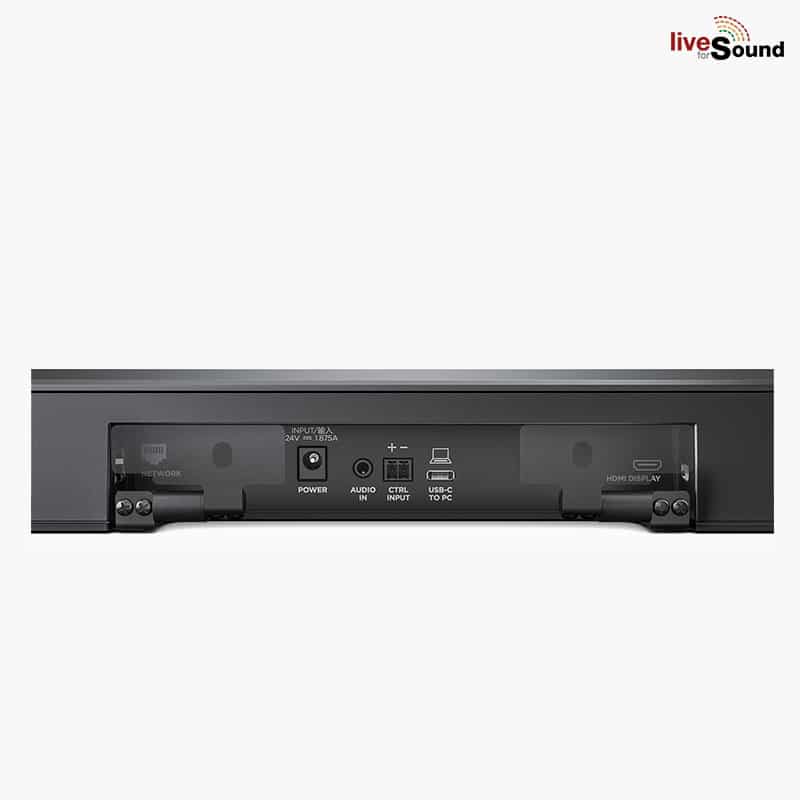

I/O |
|
Power (via external universal power supply, included) |
|
USB-C 3.0 (to PC; with DisplayLink) |
|
USB-A 3.0 (for opt. external camera) |
|
HDMI 1.4 out (to display, from PC) |
|
Analog audio input (stereo, 3.5 mm) |
|
1 Gbps Ethernet, RJ-45 |
|
General purpose input (2-pin Euroblock) |
|
|
|
CONTROL/CONFIGURATION APPLICATIONS |
|
Bose Work Configuration software |
|
(Available for Windows and macOS or via web browser) |
|
Bose Work Management software (Available for Windows) |
|
Bose Work mobile app (iOS and Android) |
|
SYSTEM REQUIREMENTS |
|
Windows 7, 8.1, or 10 |
|
macOS 10.10 or higher |
|
Google Chromebook |
|
|
|

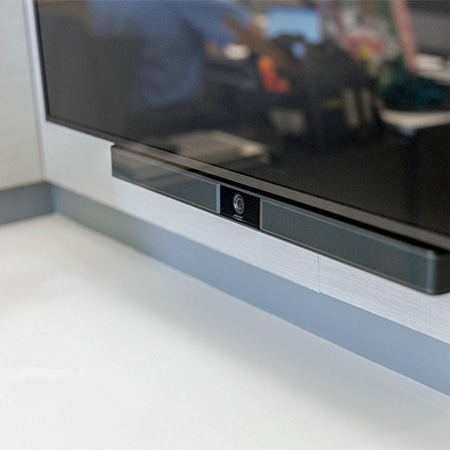

MOUNTING |
|
Table stand, included |
|
Wall mount, included |
|
Kensington slot |
|
|
|
MECHANICAL |
|
Dimensions |
48 mm (1.9 in) tall, 686 mm (27.0 in) wide, 96 mm (3.8 in) deep |
Weight |
2.5 kg (5.6 lb) |
Remote control dimensions |
18 mm (0.7 in) tall, 48 mm (1.9 in) wide, 124 mm (4.9 in) long |
|
|
POWER SUPPLY |
|
Input |
110–240 VAC, 50/60 Hz, 1.5 A max |
Output |
24 VDC, 1.875 A |
|
|
CAMERA |
|
120° FOV diagonal |
|
109° FOV horizontal |
|
67° FOV vertical |
|
Autoframing |
|
8 megapixel sensor, 4K resolution |
|
5x digital zoom |
|
3 presets |
Home, 1, 2 |
Focus distance |
0.5 m (1.6 ft) to ∞ |
Auto white balance |
|
Auto brightness |
|
Digital noise reduction |
|
UVC |
v1.1 |
Camera privacy cover |
|
|
|
COMMUNICATIONS |
|
Ethernet IEEE 802.3 |
|
Wi-Fi 802.11AC |
|
USB 3.0 UAC, UVC, HID |
|
Bluetooth® 4.2 HSP, A2DP, AVRCP, BLE |
|
DisplayLink |
|
|
|
INTERFACES |
|
IR remote |
|
Buttons |
mic mute & Bluetooth pair buttons |
Indicators |
mic mute, Bluetooth pair, light bar |
|
|
ENVIRONMENTAL |
|
Operating humidity |
noncondensing up to 90% |
Storage |
-40°C to 70°C (-40°F to 158°F), 93% relative humidity |
|
|
REGULATORY |
|
Safety |
IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368 1:2014/A11:2017 |
EMC |
FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B,EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439 |
Wi-Fi |
FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN301489 Environmental: RoHS |
|
|
PACKAGE CONTENTS |
|
Bose Videobar VB1 |
|
HDMI 2.0 cable, 1.5 m (4.9 ft) |
|
USB-C 2.0 cable, 5.0 m (16.5 ft) |
|
Remote control, with 2 AAA batteries |
|
Wall-mount cleat with mounting hardware |
|
Table stand |
|
Power supply; localized power cord |
|
Table-mount setup guide, wall-mount setup guide, safety instructions |
|
Wall wire cover |
|
Camera privacy cover |
|
USB A-to-C adapter |
|
2-pin Euroblock connector |
|
|
|
OPTIONAL ACCESSORIES |
|
USB 3.0 cable, 2.0 m (6.5 ft) |
|
