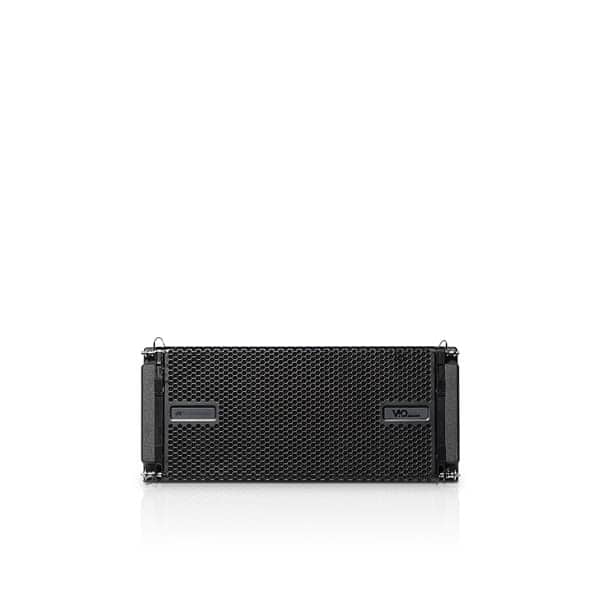

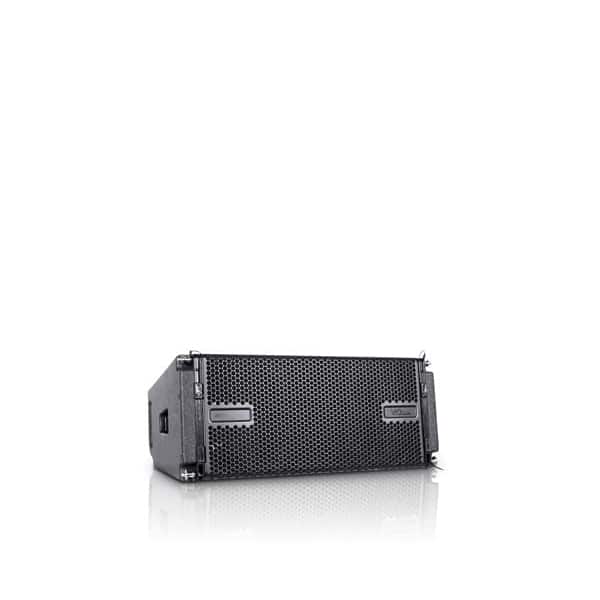

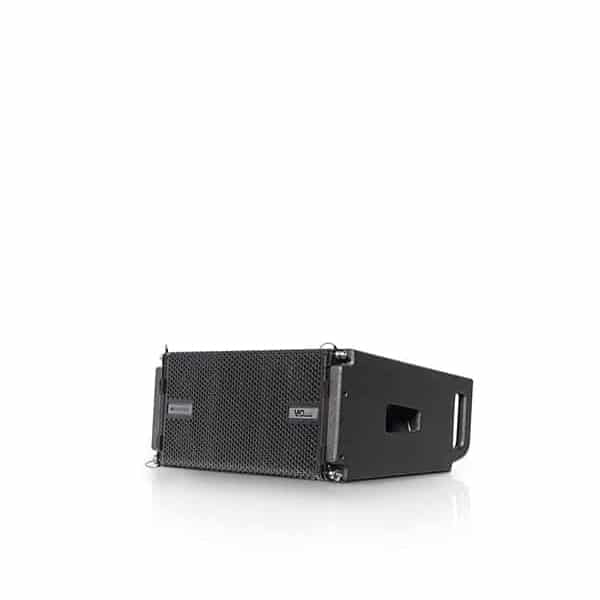

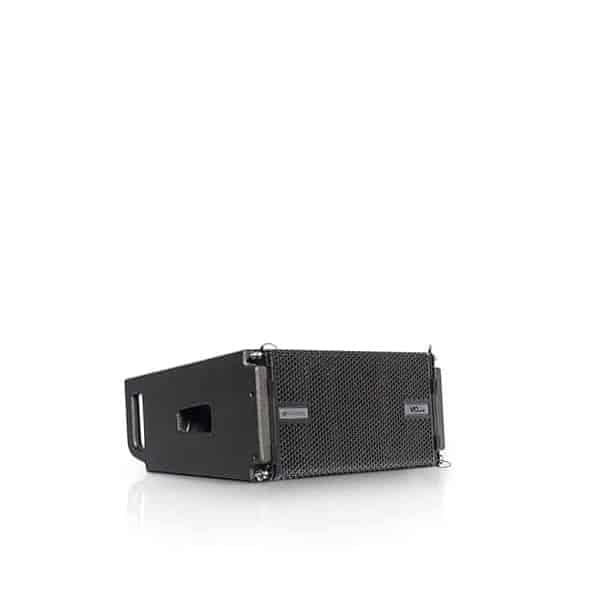

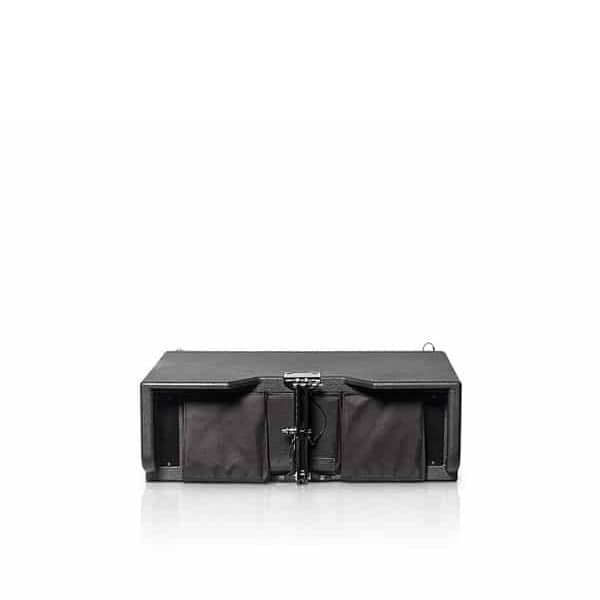

dBTechnologies VIO L208 ตู้ลำโพง Active Line Array

สินค้าของแท้ 100% นำเข้า ลดราคา

187,750฿

หมวดหมู่: ป้ายกำกับ:

dB Technologies VIO L208 2×8 นิ้ว 2 ทาง 1800 วัตต์ มาพร้อมกับเสียงอันทรงพลัง สามารถใช้งานง่ายโดยควบคุมผ่านสาย Lan (RDNet)

แชทพูดคุย

เพิ่มเพื่อน

Loading...

dBTechnologies VIO L208 ตู้ลำโพง Active Line Array

Offering lighter and faster rigging elements, featuring an unique acoustic design, combining long throw and detailed audio performance, the new VIO L208 is both a powerful yet compact stand-alone line array system, and a fully compatible down-fill for VIO L210+ VIOL208 hybrid systems, completed by VIO S Active subwoofers.

คุณสมบัติ :

  • Designed For Optimized Acoustic And Mechanical Compatibility With Vio L210
  • New Acoustic Design Featuring All-In-One Phase Plug And Hf Horn Front Panel
  • Low-Latency Processing Thanks To Powerful DSP With Linear-Phase Fir Filters
  • Fully Compliance With Aurora Net Remote Control Software
  • DSP Presets For Maximum Acoustic Customization
  • Built-In Flying Hardware Allowing Fast & Easy Set Up And Flying Operations
dBtechnologies VIO L208

Specification

Technical Data

  • Speaker Type 2-way Active Line Array Module

Acoustical data

  • Usable Bandwidth [- 6 dB] 75 Hz – 20 KHz
  • Frequency Response [+/- 3dB] 85 Hz -18,1 KHz
  • Max SPL 133.5 dB
  • HF 1×1.4″
  • Voice Coil HF 3″
  • Type HF Neodymium
  • LF 2×8″
  • Voice Coil LF 2″
  • Type LF Neodymium
  • Horizontal Directivity 100°
  • Vertical Directivity depends on array size and configuration

Amplifier

  • Amp Technology Digipro G3 [bi-amped]
  • Amp Class Class-D
  • Power RMS 900 W
  • Peak Power 1800 W
  • Cooling Convection
  • Power Supply 900 W SMPS with Auto-range PSU

Processor

  • Controller DSP 28/56 bit
  • AD/DA Converter 24 bit/48 KHz
  • Limiter Dual Active Peak, RMS, Thermal
  • Processing (filters) FIR Linear Phase Filters
  • Crossover Frequency LF-HF 1000 Hz

Input

  • Signal Input 1xXLR fem, Bal.
  • Signal Output 1xXLR male, Bal.
  • Network RDNet remote control RJ45 connector IN/OUTMains Connections 1x PowerCON TRUE1 In 1x PowerCON TRUE1 Out
  • Controls 1xSpeakers Coupling (7 presets)
    1x HF Compensation (8 presets)
    1XInput Attenuation Rotary Switch

Mechanics

  • Housing Multiplex Plywood
    Polyurea painted
  • Handles 1 x Side, 2 on back
  • Rain Cover Included
  • Rigging Points Integrated 3-point flying hardware
  • Width 600 mm (25.98 in)
  • Height 260 mm (10.23 in)
  • Depth 390 mm (15.35 in)
  • Weight 18.1 Kg (39.9 lbs)
