| Total rated output power 1 |
3000 |
|
|
|
| Number of amplifier channels |
4 |
|
|
|
| Load |
2 Ω |
2.7 Ω |
4 Ω |
8 Ω |
| All channels driven equally |
750 W |
750 W |
600 W |
750 W |
| Maximum per channel |
1000 W |
800 W |
600 W |
1000 W |
| Bridge |
1000 W |
1300 W |
1500 W |
1200 W |
| Direct Drive |
70 V |
|
100 V |
|
| All channels driven equally |
375 W |
|
375 W |
|
| Maximum per channel |
750 W |
|
1.000 W |
|
| Max. output voltage Hi-Z/8Ω mode, per channel |
145 Vpk |
|
|
|
| Max. output current Lo-Z/4Ω mode, per channel |
33 Apk |
|
|
|
|
|
|
|
|
| AMPLIFIER |
|
|
|
|
| Voltage Gain |
|
|
|
|
| Lo-Z mode, ref. 1 kHz |
32 dB, adjustable 20.0 – 44.0 dB |
|
|
| Input sensitivity, direct drive mode |
+6 dBu ( 1.55 V), fixed |
|
|
|
| THD+N (3 dB below max. AES17, 1 kHz) |
<0,1 % |
|
|
|
| Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω) |
< -80 dB |
|
|
|
| Frequency resposne (ref. 1 kHz, analog in-speaker out) |
20 Hz to 20 kHz (±1 dB) |
|
|
|
| Sampling rate |
96 kHz internal, Dante 48/96 kHz switchable |
|
|
| Latency (analog in-speaker out) |
0.77 ms |
|
|
|
| Number of mic/line inputs |
4 |
|
|
|
| Gain |
0 to 60 dB |
|
|
|
| Maximum input level |
+18 dBu |
|
|
|
| Phantom power |
+ 48 V, switchable per input |
|
|
| Input impedance |
>10 kΩ |
|
|
|
| E.I.N (A-weighted) @ 150Ω |
-127 dBu |
|
|
|
| Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω) |
<-80 dB |
|
|
|

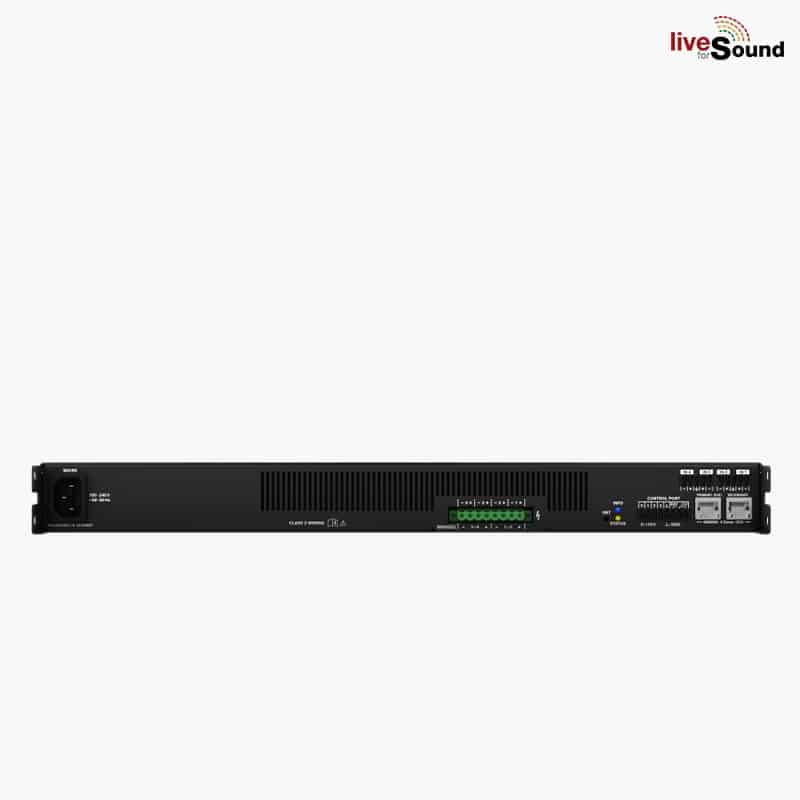

| CONNECTIVITY |
|
|
|
|
| Mic/Line inputs |
2 x 5-pin Euroblock-style, male |
|
|
| Speaker outputs |
1 x 8-pin Euroblock-style, 2.5 mm² (12 AWG) |
|
|
| Network |
2 x RJ45 |
|
|
|
| Control port |
1 x 8-pin Euroblock-style |
|
|
|
| Mains power input |
1 x IEC C14 |
|
|
|
| NETWORK |
|
|
|
|
| General |
1000base-T/100base-TX, integrated switch |
|
|
| Redundancy modes |
Glitchfree (PRIMARY/SECONDARY), RSTP |
|
|
| Backup power supply (ghostPOWER) |
1 x PoE (IEEE802.3af) on PRIMARY port |
|
|
| Network audio (inputs x outputs) |
8 x 8, 48/96 kHz, Dante |
|
|
|
| CONTROL PORT |
|
|
|
|
| GPIO control port |
3 ports, switchable: analog in/digital in/digital out |
|
| Analog input range |
0 V to +13 V, 133 kΩ input resistance |
|
|
| Digital input limits |
ON: <1,5 V |
|
|
|
|
OFF: >2,0 V, internal pull-up (10kΩ / 10V) |
|
|
| Digital outputs |
ON: output switched to GND, max. 200 mA |
|
|
|
OFF: open collector |
|
|
|
| Reference voltage output |
+10V, max. 200 mA, supervised, short circuit protected |
|
| READY/FAULT |
Galvanic isolated relay, max. 30 VDC/500 mADC |
|
| GENERAL |
|
|
|
|
| Power consumption |
|
|
|
|
| Rated power consumption (1/8 max. output power) |
550 W |
|
|
|
| Eco mode |
25 W |
|
|
|
| Stand-by mode |
<15 W |
|
|
|
| Power requirements |
100 V to 240 V, 50 Hz to 60 Hz AC |
|
|
| Power Supply Technology |
Switching mode power supply with digitally controlled power factor correction |
| Protections |
Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Lim colspan=”4″iters, Mains Over-/Under Voltage Protection |
| Cooling |
Front-to-rear, temperature controlled fan, supervised |
|
| Ambient Temperature Limits |
+5 °C to +40 °C (+40 °F to +105 °F) |
|
|
| Dimensions |
483 mm x 44,1 mm x 447 mm |
|
|
| 19 in x 1.74 in x 17.6 in |
|
|
|
| Weight |
7,45 kg (16.4 lbs) |
|
|
|
| Shipping weight |
9,3 kg (20.5 lbs) |
|
|
|
