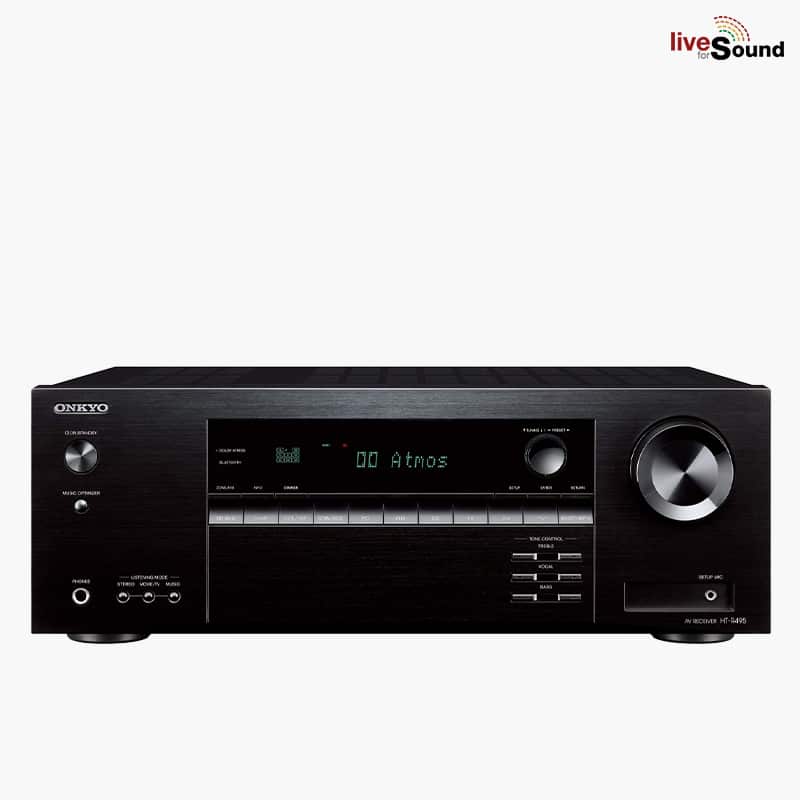

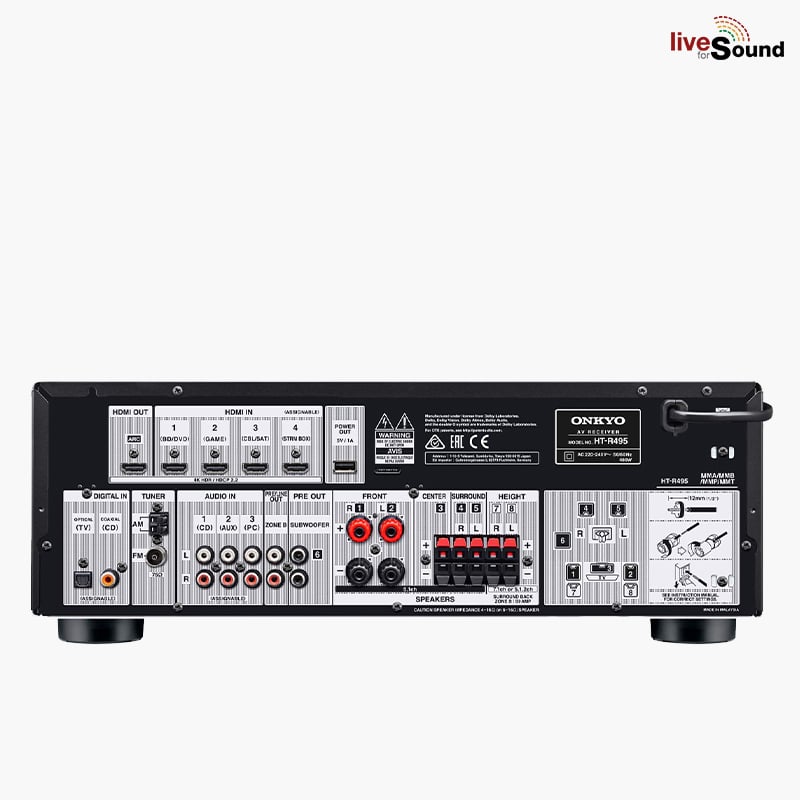

| AMPLIFIER SPECIFICATIONS |
|
| Power output (All channels) |
160 W/Ch (6 Ω, 1 kHz,10% THD, 1-ch driven) 135 W/Ch (6 Ω, 1 kHz, 1% THD, 1-ch driven, IEC) |
| THD+N (Total Harmonic Distortion + Noise) |
0.08%(20 Hz–20 kHz, half power) |
| Input sensitivity and impedance |
200 mV rms/47 kΩ (Line) |
| Frequency response |
10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone control |
±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio |
109 dB (Line, IHF-A) |
| Speaker impedance |
4 Ω–16 Ω |
| Radio |
AM/FM |
| Dimensions (W x H x D) |
435 x 160 x 328 mm |
| Weight |
8.2 kg |

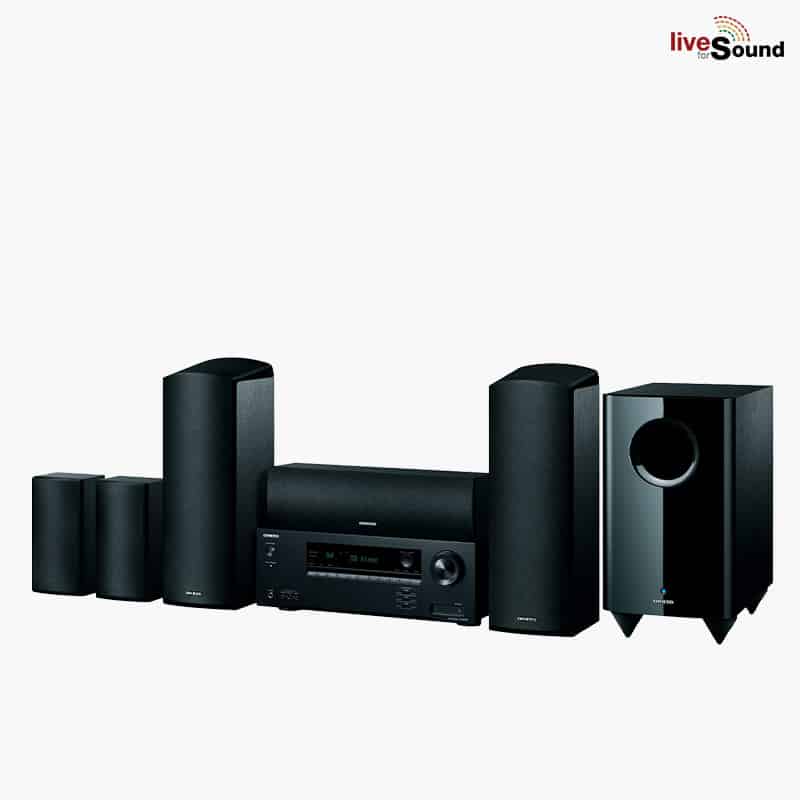

| SPEAKER SPECIFICATIONS |
|
| Speaker Type (Front) |
2-Way bass-reflex, 12 cm cone woofer, 2.5 cm balanced-dome tweeter |
| Speaker Type (Height) |
Full-range acoustic-suspension, |
| 8 cm cone woofer |
| Speaker Type (Centre) |
2-Way bass-reflex, 8 cm cone woofer x 2 2.5 cm balanced-dome tweeter |
| Speaker Type (Surround) |
Full-range acoustic-suspension, |
| 8 cm cone woofer |
| Speaker Type (Subwoofer) |
Bass-reflex, 20 cm cone |
| Frequency Response (Front) |
55 Hz–50 kHz |
| Frequency Response (Height) |
80 Hz–20 kHz |
| Frequency Response (Centre) |
65 Hz–50 kHz |
| Frequency Response (Surround) |
80 Hz–20 kHz |
| Frequency Response (Subwoofer) |
27 Hz–150 Hz |
| Output Sound Pressure Level (Front) |
83 dB/W/m |
| Output Sound Pressure Level (Height) |
82.5 dB/W/m |
| Output Sound Pressure Level (Centre) |
86 dB/W/m |
| Output Sound Pressure Level (Surround) |
81 dB/W/m |
| Max. Input Power (Front, height/center/surround) |
130W |
| Max. Output Power (Subwoofer) |
90 W (4 Ω, 100 Hz, 10% THD) |
| Nominal Impedance (Front, height/center/surround) |
6Ω |
| Dimensions (W x H x D) – Front |
155 x 467 x 183 mm |
| Dimensions (W x H x D) – Centre |
409 x 115 x 121 mm |
| Dimensions (W x H x D) – Surround |
115 x 230 x 96 mm |
| Dimensions (W x H x D) – Subwoofer |
230 x 425 x 410 mm |
| Weight (Front) |
3.6 kg |
| Weight (Centre) |
2.2 kg |
| Weight (Surround) |
1.0 kg |
| Weight (Subwoofer) |
7.7 kg |
