Yamaha TF1 ดิจิตอลมิกเซอร์ 40 ช่องสัญญาณ

สินค้าของแท้ 100% นำเข้า ลดราคา

83,000฿

หมวดหมู่: ป้ายกำกับ:

Feture

✅17 motor faders (16 channels + 1 master)

✅40 input mixing channels (32 mono + 2 stereo + 2 return)

✅20 Aux (8 mono + 6 stereo) + Stereo + Sub buses

✅8 DCA groups with Roll-out

✅16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs

✅16 analog XLR outputs

✅34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device

✅8 Effects and 10 GEQ

✅1 expansion slot for NY64-D audio interface card

แชทพูดคุย

เพิ่มเพื่อน

Loading...

Yamaha TF1 ดิจิตอลมิกเซอร์ 40 ช่องสัญญาณ

Touch Operation for Intimate Control

Refined for the smoothest possible operation via touch-panel control, the TF user interface offers a smooth workflow that can be an advantage in any mixing situation. The display content has been specifically designed for easy, direct accessibility, with a layout that promotes the most natural, efficient mixing. Touch panel operation is as easy as shaping the sound with your fingertips.

Touch & Turn Knob Offers Extra Control Precision

When you need extra precision for a fine EQ or other adjustment, the physical Touch & Turn knob is always available right beside the touch panel. There are also four User Defined Knobs below the panel that can be assigned to control compressor threshold, EQ gain, or other parameters you need fast, direct access to while mixing. The knobs always affect the currently selected channel.

Traditional Overview and Selected Channel Interfaces

Like the CL series consoles, operation is based around Overview and Selected Channel windows. The overview display shows the parameters for eight channels at a time, while the Touch & Turn knob provides direct access to gain, 1-knob EQ™, 1-knob COMP™, gate threshold, effect send level, pan, and other parameters. Touch the highlighted parameter a second time to switch to the Selected Channel display when you need access to detailed parameters for finer control.

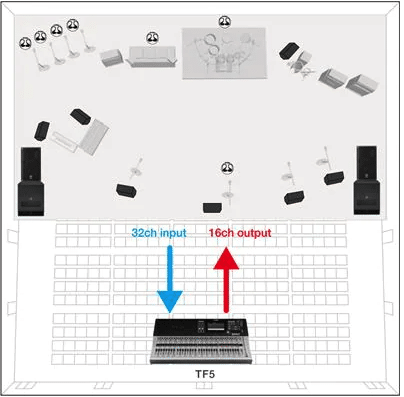

TF can be used to mix the large bands because it has 32ch inputs. Also, it has 16ch outputs that can be freely assigned allowing for 14 monitor outputs if 2ch has been used for main output. A TF can control both stage and monitor mixing.

MonitorMix App for iPhone allows players on stage to control their monitor level by themselves, thus increasing flexibility and efficiency when many players are involved.

TF5 All system

Tio1608-D allows you to easily expand a TF digital mixer system up to 40ch inputs/24ch outputs. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.

TF5 expansion with Tio1608-D

TF consoles are equipped with enough outputs to be used as a monitor console. The Stereo AUXs have Insert FXs that allow you create professional IEM mixes. Also available is the MonitorMix App for iPhone. Up to ten MonitorMix Apps can be connected per console and these allow players on stage to independently control their own monitor level.

TF5 Monitor

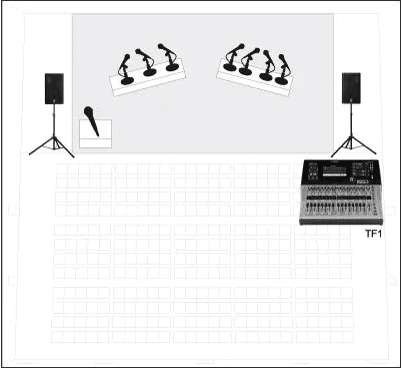

The compact TF console is perfect for applications that require space-saving sound systems such as conferences or corporate events. Since TF1 is a rack-mountable console it will provide you with a simple and discreet sound system. Recording of the event and playback of BGM can be easily done via USB memory. The touch screen and 1KnobEQ allow for easy control of fine adjustments such as for the EQ and feedback suppressors. StageMix wireless App gives greater freedom by allowing operators to control the console remotely during an event.

TF5 Event

TF5

TF3

TF1

Fader Configuration 32 + 1 (Master) 24 + 1 (Master) 16 + 1 (Master)
Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return) 48 (40 mono + 2 stereo + 2 return) 40 (32 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo) 20 (8 mono + 6 stereo) 20 (8 mono + 6 stereo)
Stereo Buses 1 1 1
Sub Buses 1 1 1
ฟังค์ชัน อินพุต แชนแนล 8 DCA Groups 8 DCA Groups 8 DCA Groups
I/O Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs 16 (XLR) 16 (XLR) 16 (XLR)
เอกซ์แพนชัน สล็อต 1 1 1
ออนบอร์ โพรเซสเซอร์ DSP 8 Effects + 10 GEQ 8 Effects + 10 GEQ 8 Effects + 10 GEQ
อัตราความถี่ในการสุ่มตัวอย่าง ภายใน 48 kHz 48 kHz 48 kHz
สัญญาณเสียงดีเลย์ Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
ค่ารวมความเพี้ยนของเสียง Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
ความถี่ในการตอบสนอง +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
ไดนามิก เรนจ์ 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
ฮัม & วอยซ์เลเวล การใส่เสียงเทียบเท่า –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
การส่งออกเสียงที่เหลือ –85 dBu, ST master off (Measured with an A-Weight filter) –85 dBu, ST master off (Measured with an A-Weight filter) –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
กำลังไฟที่ต้องใช้ 100–240 V 50/60 Hz 100–240 V 50/60 Hz 100–240 V 50/60 Hz
ไฟฟ้าที่ใช้ 120 W 110 W 100 W
ขนาด กว้าง 866 mm (34.1in) 716 mm (28.2in) 510 mm (20.1in)
สูง 225 mm (8.9in) 225 mm (8.9in) 225 mm (8.9in)
ลึก 599 mm (23.6in) 599 mm (23.6in) 599 mm (23.6in)
น้ำหนักรวม 20.0 kg (44.1lb) 17.0 kg (37.5lb) 13.5 kg (29.8lb)
อุปกรณ์เสริม Quick Guide, Power Cord, Nuendo Live Quick Guide, Power Cord, Nuendo Live Quick Guide, Power Cord, Nuendo Live
ตัวเลือก Expansion Card, Foot Switch (FC5) Expansion Card, Foot Switch (FC5) Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
อื่น ๆ Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Analog input characteristics

Input Terminals GAIN Load
Impedance
For Use With
Nominal
Input Level Connector balanced /
Unbalanced
Sensitivity*1 Nominal Max. before clip
INPUT1-32 (TF5)
INPUT1-24 (TF3)
INPUT1-16 (TF1)
+66dB 7.5K Ω 50-600 Mics
or 600 Lines
-82dBu (61.6V) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 1,2 10k 600 Lines -30dBV (31.6V) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*4 In these specifications, 0dBu = 0.775Vrms.
*5.+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog output characteristics

Output Terminals Source
Impedance
For Use With
Nominal
GAIN SW Output Level Connector balanced /
Unbalanced
Nominal Max. before clip
OMNI OUT 1-16 75Ω 600 Lines “+24dBu” position (default) +4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
PHONES *5 100Ω 40 Phones 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 In these specifications, 0dBu = 0.775Vrms.
*4 All output DA converters are 24bit, 128times oversampling.
*5 The position of the level control is lowered by 16dB from the maximum.

Digital input/output specifications

Terminals Format Data length Audio Connector
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB Playback: MP3 or WAV file data / Record: WAV file data USB (A type)

Control I/O specifications

Terminals Format Level Connector
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW TS Phone
