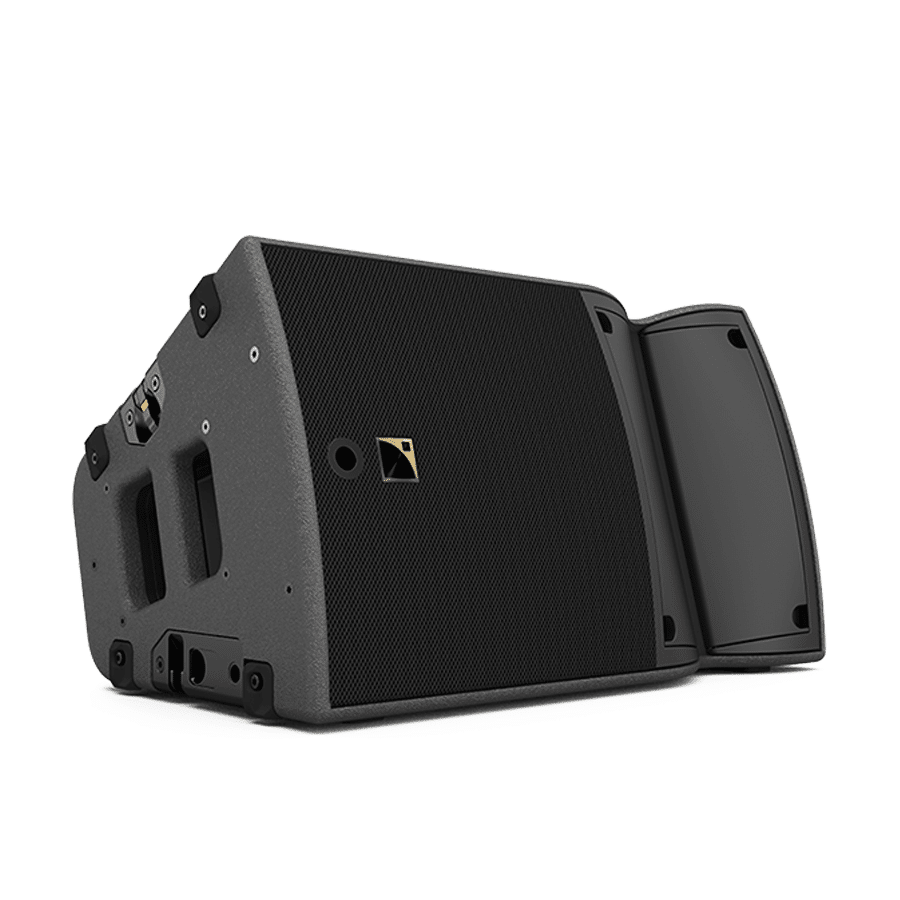

L-ACOUSTICS A10 Wide ลำโพงไลน์อาเรย์ 10 นิ้ว 1200วัตต์ที่ 8โอมห์ ไม่มีแอมป์ในตัว ความดัง 137dB
ตัวตู้ทำจาก Premium grade Baltic beech and birch plywood ดอกลำโพง 10 นิ้ว รองรับกำลังขับสูงสุด 1200 วัตต์ ไม่มีแอมป์ในตัว ตอบสนองความถี่ 67Hz – 20kHz ความดัง 137dB สามารถแขวนและตั้งบนขาตั้งได้ หนัก 20 กก. กันน้ำกันฝุ่น IP55
L-ACOUSTICS A10 Wide ลำโพงไลน์อาร์เรย์ Passive
A10 Wide is a medium throw loudspeaker designed for production applications. Part of the multifunctionnal A10 family, the passive 10“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance. The 30° enclosure of A10 Wide enables a compact array, deployed radially, to provide expansive coverage while preserving sightlines. Panflex allows users to adapt directivity to the audience geometry and ensure exceptional frequency response stability. Combinations of A10 Wide and A10 Focus can be flown or stacked to form a vertical line source. A10 Wide can also be used individually as a configurable directivity point source for delays and pole-mounted applications. An A10 Wide line source provides exceptional performance in the vocal range. The companion subwoofer KS21 further reinforces contour and extends bandwidth to 31 Hz for demanding applications. A10 Wide is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution as fills or delays.
Electroacoustic specs
2-way passive constant curvature WST® 30° enclosure
amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB) | 67 Hz – 20 kHz ([A10]) |
Maximum SPL1 | 137 dB ([A10]) |
Nominal directivity (-6 dB) | Enclosure: 30° L-Fins: 70° / 110° symmetric or 90° asymmetric |
Transducers | LF: 1 × 10″ neodymium cone driver HF: 1 × 2.5″ neodymium diaphragm compression driver |
Acoustical load | L-Vents, bass-reflex HF: DOSC waveguide, Panflex |
Nominal impedance | 8 Ω |
1 Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors | 2 × 4-point speakON |
Rigging and handling | Flush-fitting 2-point rigging system 2 × handle 8 × corner stop 2 × ground runner 1 DIN580-compatible M8 threaded insert |
Weight (net) | 20 kg / 44 lb |
Cabinet | Premium grade Baltic beech and birch plywood |
Front | Coated steel grill acoustically neutral 3D fabric |
Rigging components | High grade steel with anti-corrosion coating |
Finish | Dark grey brown Pantone 426 C |
IP | IP55 |
