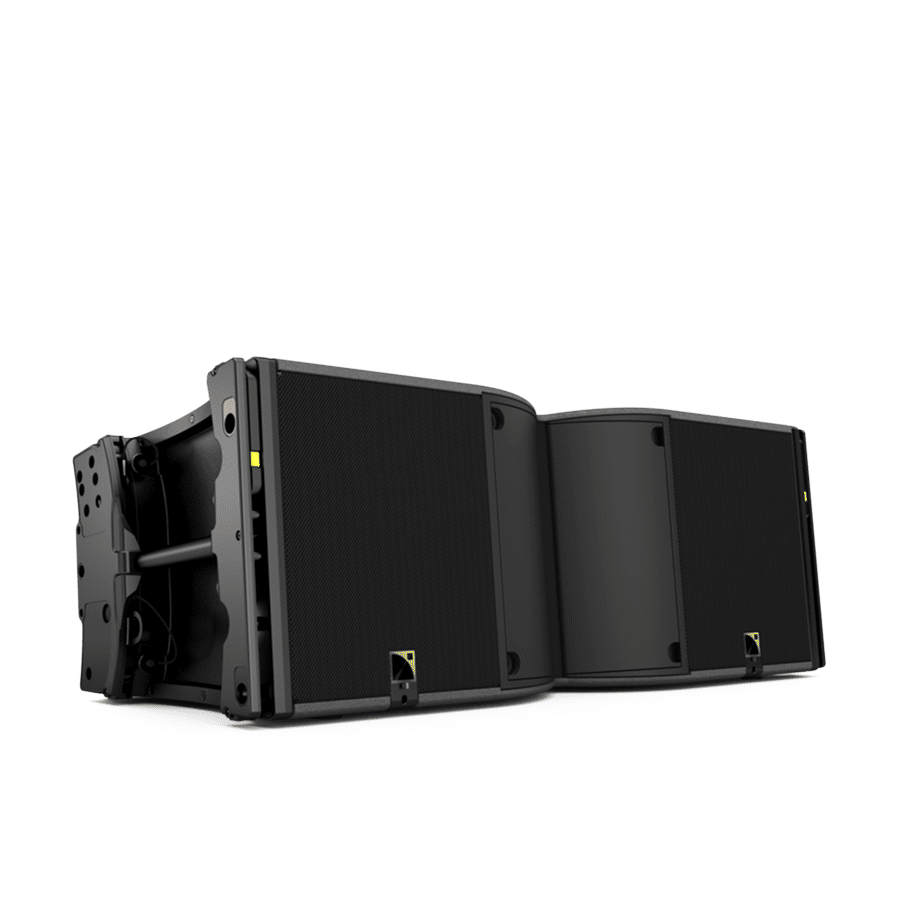

L-ACOUSTICS K3 ลำโพงไลน์อาเรย์ 12 นิ้ว 2100วัตต์ที่ 8โอมห์ ไม่มีแอมป์ในตัว ความดัง 143dB
0฿
ตัวตู้ทำจาก Premium grade Baltic beech and birch plywood ดอกลำโพง 12 นิ้ว รองรับกำลังขับสูงสุด 2100 วัตต์ ไม่มีแอมป์ในตัว ตอบสนองความถี่ 42Hz – 20kHz ความดัง 143dB หนัก 43 กก. กันน้ำกันฝุ่น IP55
L-ACOUSTICS K3 Full-range active 2 ทาง
Completing the K series line, K3 is a versatile loudspeaker satisfying all the requirements for mid-size events and venues from 1,000 to 10,000 people. Designed as a true full-range line source, K3 integrates 12” transducers to deliver large-format system performance but is dimensioned in a typical 10” compact format. With reduced subwoofer and amplification needs, K3 deployment is fast, straightforward, sustainable, and more economical.
The K3 two-way active enclosure possesses all of the hallmarks that have made K Series the reference in line array technology, including optimized mechanical design for reduced weight, laminar vents for a powerful and linear low frequency response, and time-tested effortless captive rigging. It also features L-Acoustics Panflex™ technology to offer a choice of four horizontal directivity patterns: 70° or 110° symmetrical or 90° asymmetrical on either side. With Panflex and inter-element angles ranging from 0° to 10°, K3 line source coverage can be precisely tailored to fit any audience geometry.
Ideally dimensioned to keep sightlines clear, K3 integrates easily into venues with space restrictions. It also complements the larger K1 or K2 systems for large-scale touring events, festivals, and concerts.
K3i, the install version with streamlined rigging and custom color palette, fits indoor and outdoor events calling for architectural discretion.
คุณสมบัติ :
- Large format system performance
- Compact size
- Uncompromised LF contour and bandwidth
- Time-tested effortless rigging system
- 4-in-1 coverage patterns (70°/90° L-R/110°)
- Efficient amplification
Electroacoustic specs
2-way active WST® enclosure
amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB) | 42 Hz – 20 kHz ([K3 70]) |
Maximum SPL1 | 143 dB ([K3 70]) |
Nominal directivity (-6 dB) | Horizontal: 70° / 110° symmetric or 90° asymmetric vertical: depending on number of elements and array curvature |
Transducers | LF: 2 × 12″ neodymium cone driver HF: 1 × 4″ diaphragm compression driver, neodymium |
Acoustical load | LF: bass-reflex, L-Vents HF: DOSC waveguide, Panflex |
Nominal impedance | LF : 8 Ω HF : 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors | 2 × 4-point speakON |
Rigging and handling | Flush-fitting 4-point rigging system 2 handles inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
Weight (net) | 43 kg / 95 lb |
Cabinet | Premium grade Baltic birch plywood |
Front | Coated steel grill acoustically neutral 3D fabric |
Rigging components | High grade steel with anti-corrosion coating |
Finish | Dark grey brown Pantone 426 C |
IP | IP55 |
- ขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
Brand |
L-ACOUSTICS |
---|
