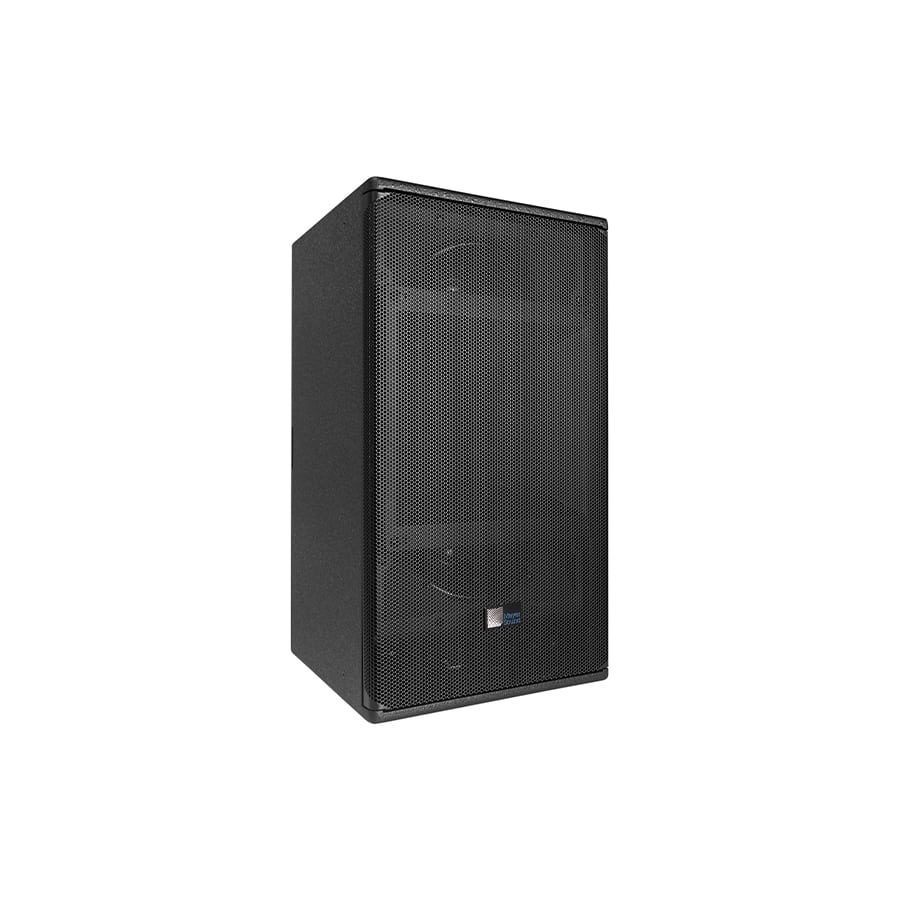

ACOUSTICAL1 |
|
Operating Frequency Range2 |
55 Hz – 19.5 kHz |
Frequency Response3 |
56 Hz – 19 kHz ± 4 dB |
Phase Response |
90 Hz – 19.5 kHz ±45° |
Linear Peak SPL |
132.5 dB with 18 dB crest factor (M-noise),
130 dB (Pink Noise), 131 dB (B-noise) |
COVERAGE |
Rotatable horn: 110° x 50° |
|
|
TRANSDUCERS |
|
Low Frequency |
Two 8-inch cone drivers; 4 Ω nominal impedance |
High Frequency |
One 3-inch diaphragm compression driver connected to a rotatable horn; 8 Ω nominal impedance |
|
|
AUDIO INPUT |
|
Type |
Differential, electronically balanced |
Maximum Common Mode Range |
±15 V DC, clamped to earth for voltage transient protection |
Connectors |
XLR 3-pin female input with male loop output; optional XLR 5-pin connector to accommodate both
balanced audio and RMS signals. |
Input Impedance |
10 kΩ differential between pins 2 and 3 |
Wiring5 |
Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio
frequencies
Pin 2: Signal +
Pin 3: Signal –
Pin 4: RMS (polarity insensitive)
Pin 5: RMS (polarity insensitive)
Case: Earth ground and chassis |
Nominal Input Sensitivity |
0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music |
Input Level |
Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the
maximum peak SPL over the operating bandwidth of the loudspeaker. |
|
|
AMPLIFIER |
|
Type |
three-channel, Class-D |
Total Output Power6 |
1950 W peak |
THD, IM, TIM |
<0.02% |
Cooling |
Convection |
|
|
AC POWER |
|
Connector |
powerCON 20 input with loop output |
Automatic Voltage Selection |
90–265 V AC, 50–60 Hz |
Safety Rated Voltage Range |
100–240 V AC, 50–60 Hz |
Turn-on and Turn-off Points |
90 V AC turn-on, no turn-off; internal fuse protection above 265 V AC |
|
|
CURRENT DRAW |
|
Idle Current |
0.27 A rms (115 V AC); 0.25 A rms (230 V AC); 0.29 A rms (100 V AC) |
Maximum Long-Term Continuous Current (>10 sec |
1.9 A rms (115 V AC); 1.0 A rms (230 V AC); 2.2 A rms (100 V AC) |
Burst Current (<1 sec)7 |
3.1 A rms (115 V AC); 1.5 A rms (230 V AC); 3.4 A rms (100 V AC) |
Maximum Instantaneous Peak Current |
t 6.9 A peak (115 V AC); 3.4 A peak (230 V AC); 7.9 A peak (100 V AC) |
Inrush Current |
<20 A peak |
|
|
RMS NETWORK (OPTIONAL) |
|
|
Two-conductor twisted-pair network that reports all operating parameters of amplifiers to system
operator’s host computer. |
PHYSICAL |
|
Dimensions |
W: 12.51 in (318 mm) x H: 22.31 in (567 mm) x D: 14 in (356 mm); D with handles: 15.38 in (391 mm) |
Weight |
52 lb (23.6 kg) |
Enclosure |
Premium multi-ply birch with slightly textured black finish |
Protective Grille |
Powder-coated, round-perforated steel |
Rigging |
11 integrated M8 threaded points; 35 mm Pole Mount with M20 thread; optional accessories for
various rigging options (see accessories section). |
