MIDAS DDA DM12 มิกเซอร์ อนาล็อก
The compact DM12 honours yourstage or studio desktop space,while providing incredible sonicperformance, amazing versatility � andan unheard of level of affordability.
What is the secret behind DM12’ssuperb, studio-quality sound? TheDM12 features 8 award-winning,Midas microphone preamplifi ers withtrue +48 V Phantom Power, acclaimedby audio engineers the world over for their transparency and nuancedlow noise, high-headroom design. Add to this TRS Line Inputs on all 12channels (8 mono and 2 stereo), mono channel Inserts and 3-band EQ withmid-frequency sweep, 2 switchable pre/post-fader aux sends, 2 monitorouts and 2-track RCA I/O
Live Performance and Studio Recording
With 12 channels, the DM12 has more than enough microphone and line inputs to manage a small band or worship team with channels to spare – both on the stage and in the studio. It is also the ideal choice for use as a keyboard or drum sub-mixer for larger scale performances.
Dedicated Stereo Inputs
Line channels 9/10 – 11/12 are dedicated stereo channels, making them ideal for stereo instruments, such as keyboards – and can also be used for mono signals thanks to a convenient balance control on each 2-channel grouping. These channels can also be used as return inputs for signals sent external effects processing equipment.
Dual Aux Sends
The DM12 is also equipped with 2 aux sends with pre/post fader switching for added versatility. Users can select to use them for external effects processing, custom monitor mixes, or a combination of the two. Additional monitoring outputs are provided of the main mix for stage or studio monitor applications.
Classic Precision
All of DM12 mixer’s 60 mm faders have been carefully designed to provide a long life of highly precise level setting, ensuring repeatable and flawless performance for many years to come.
คุณสมบัติ:
- Live performance and studio recording analogue mixer with 12 input channels
- 8 mono input channels with award-winning Midas microphone preamplifiers
- 2 electronically-balanced stereo line input channels on ¼ ” TRS connectors

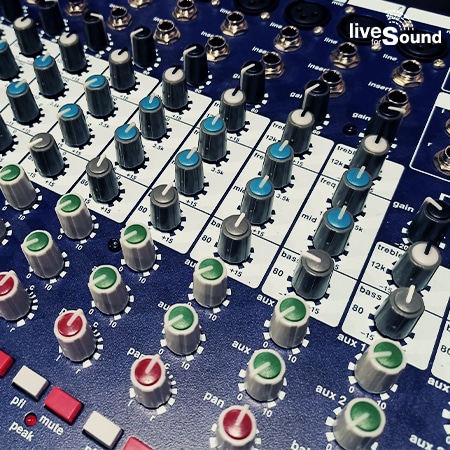

- 3 band EQ on mono channels with swept mid band
- 2 aux sends with pre/post fader switching
- 60 mm precision long-life faders
- Rugged chassis construction for durability in portable applications

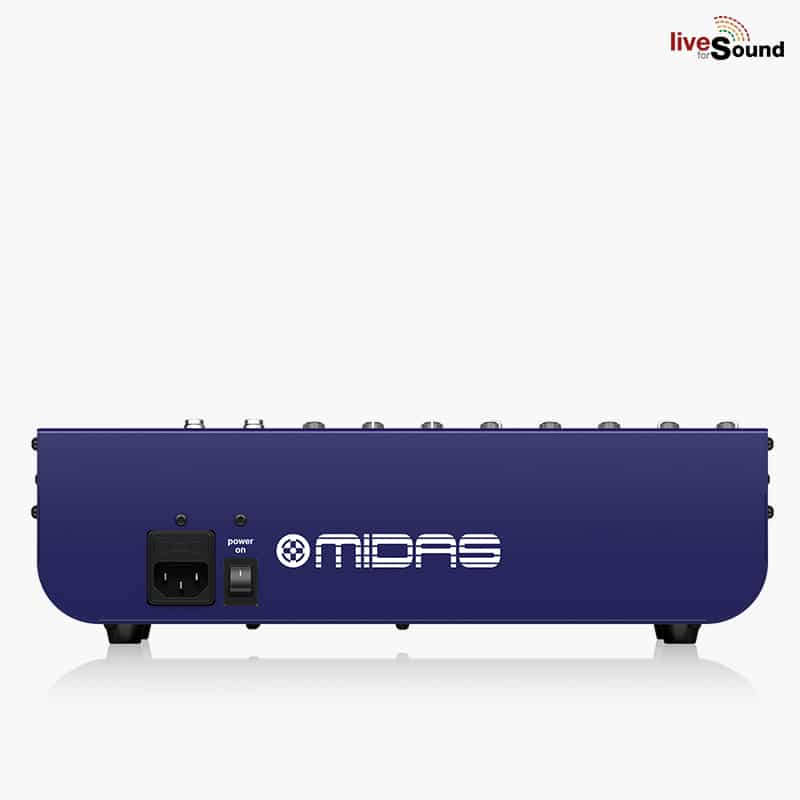

- Auto-ranging universal switch-mode power supply
