MIDAS HERITAGE D HD96-24-CC-TP มิกเซอร์ดิจิตอล 144 ช่อง สำหรับงานทัวร์ระดับมืออาชีพ
1,549,000฿
มิกเซอร์ดิจิตอล 144 ช่อง รองรับ 123 บัสสัญญาณออก พร้อมจอสัมผัส 21 นิ้ว รองรับ HyperMAC และ AES50 มี 28 เฟดเดอร์มอเตอร์ไดร์ฟ ใช้หน่วยประมวลผล Graviton Mk 2 พร้อม Touring Grade Road Case สำหรับงานทัวร์ระดับมืออาชีพ
MIDAS HERITAGE D HD96-24-CC-TP มิกเซอร์ดิจิตอล 144 ช่อง สำหรับงานทัวร์ระดับมืออาชีพ

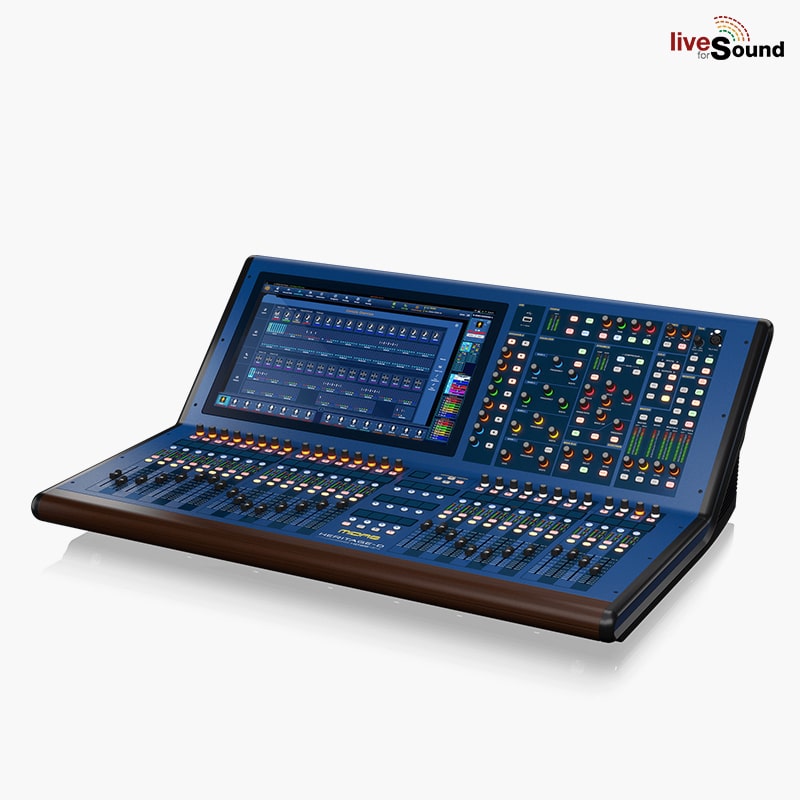

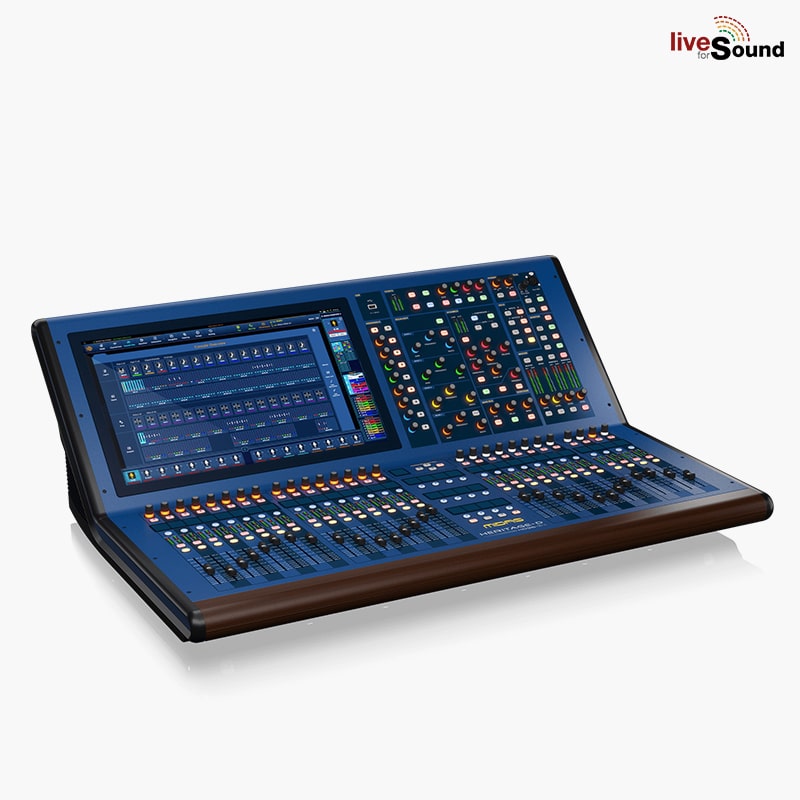

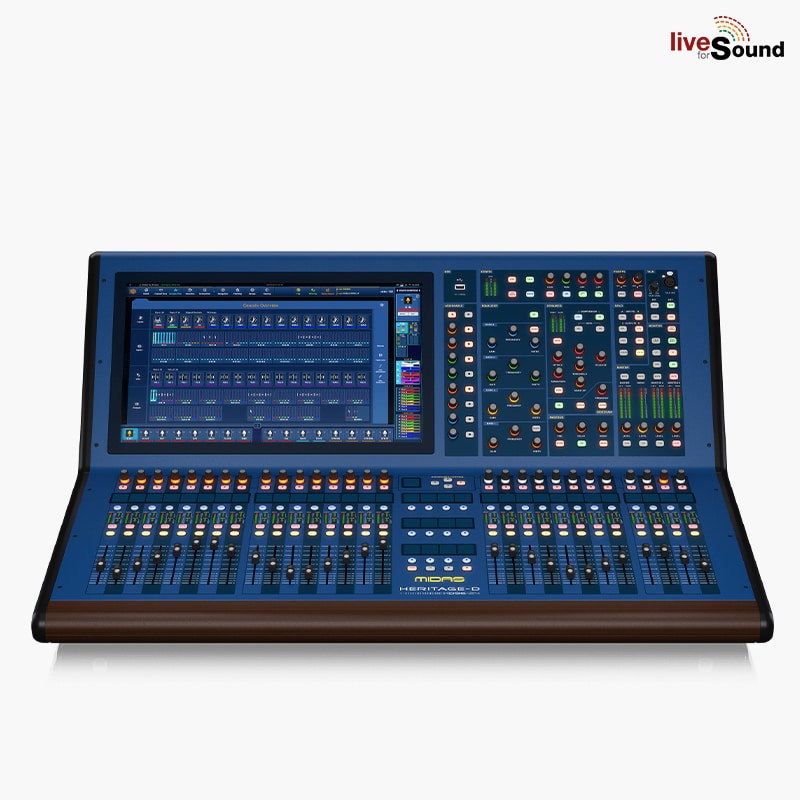

MIDAS HD96-24-CC-TP เป็นมิกเซอร์ดิจิตอลระดับเรือธงที่ออกแบบมาสำหรับ งาน Live Sound และ Touring รองรับ 144 ช่องสัญญาณอินพุต และ 123 บัสสัญญาณออก ใช้ระบบประมวลผลเสียง Graviton Mk 2 Processing Engine ให้คุณภาพเสียงที่แม่นยำและ Dynamic Range ที่เหนือกว่า พร้อม จอสัมผัสขนาด 21 นิ้ว ที่รองรับ Multi-Touch Gesture ทำให้การมิกซ์เสียงเป็นไปได้อย่างราบรื่นและแม่นยำ
คุณสมบัติ:
- 144 ช่องสัญญาณอินพุต และ 123 บัสสัญญาณออก
- ใช้ Graviton Mk 2 Processing Engine ให้ Dynamic Range สูง
- จอสัมผัส 21 นิ้ว รองรับ Multi-Touch Gesture
- 28 เฟดเดอร์มอเตอร์ไดร์ฟ ให้การควบคุมที่แม่นยำ
- รองรับ HyperMAC และ AES50 สำหรับการเชื่อมต่อสัญญาณความเร็วสูง
- รองรับ Dante, MADI และ USB Audio Interface ผ่านช่อง CM-1 Expansion
- Dual Network Bridge Format Converter รองรับ 128 ช่องสัญญาณแบบ Bidirectional
- มี 24 VCA Groups และ 24 Population Groups
- รองรับ 48 กราฟฟิก EQ Klark Teknik DN370 และ 24 Multi-Channel FX Processors
- ฟังก์ชัน Flexi-Aux สามารถส่งสัญญาณ Aux ไปยัง Aux ได้
- Integrated Bluetooth และ Wireless Transceiver Module สำหรับควบคุมระยะไกล
- Dual ULTRANET Ports รองรับ 32 ช่องสัญญาณดิจิตอล
- Dual Redundant Power Supply ให้ความเสถียรสูงสุด

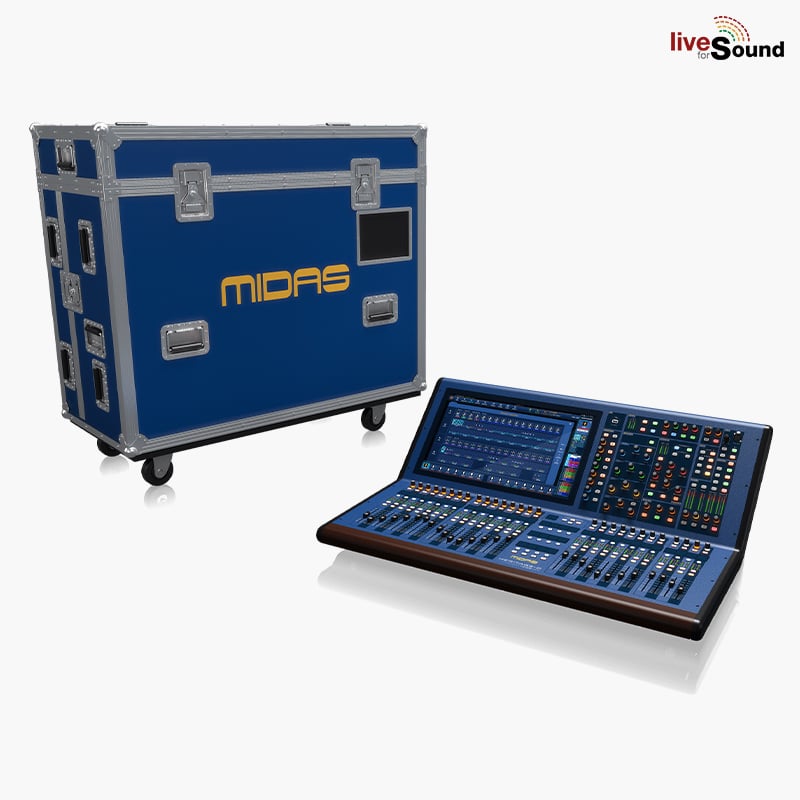

- มาพร้อม Touring Grade Road Case เพื่อความปลอดภัยสูงสุดระหว่างการขนส่ง
MIDAS HD96-24-CC-TP ออกแบบมาสำหรับ งานคอนเสิร์ตระดับโลก, ระบบเสียงโรงละคร, งานอีเวนต์ขนาดใหญ่ และสตูดิโอมืออาชีพ ด้วยคุณสมบัติที่ครบครันและการออกแบบที่ทนทาน ทำให้มิกเซอร์รุ่นนี้เป็นตัวเลือกที่ดีที่สุดสำหรับงาน Live Sound และ Touring
SPECIFICATION | DETAILS |
Input Processing Channels | 144 flexi channels |
Output Processing Channels | 96 flexi aux outputs, 24 matrices, stereo bus, mono bus |
Point-to-Point Routing Matrix | 622 × 652 |
Signal Processing | 64-bit floating point |
D/A Converter | 24-bit, 96 kHz, 128× oversampling |
A/D Converter | 24-bit, 96 kHz, 128× oversampling |
Sampling Frequency | 96 kHz |
I/O Latency (surface input to output) | 1.34 ms |
Input Audio Processing | • Dual-slope high and low-pass filters |
• True phase filter control | |
• 4-band parametric EQ with 3 shelf modes | |
• 4-mode creative input compressors | |
• Input gates or ducker | |
• Insert point on/off with processing order change | |
• Direct output with adjustable level and processing pick-off point | |
• Delay-compensated aux return mode on inputs | |
• 5 × tap-off points per send | |
Output Audio Processing | • Output 4-band parametric EQ with shelving/HP/LP options |
• 4-mode creative output dynamics | |
• Insert point on/off with processing order change | |
• Direct input with adjustable level and processing tap-off point | |
Mixing Control Assistance | • 12 × talk groups |
• 12 × mute groups | |
• 24 × surface POPulation groups | |
• 24 × VCA-associated population groups | |
• Scene snapshot automation | |

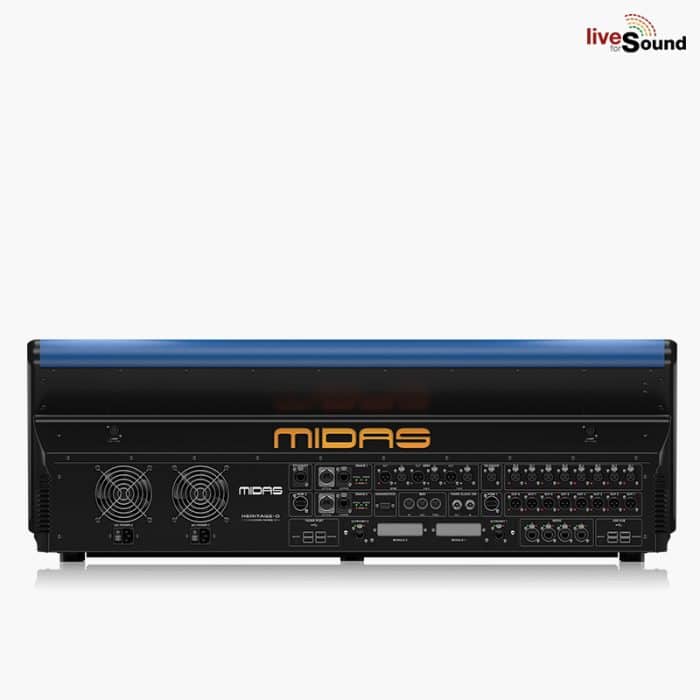

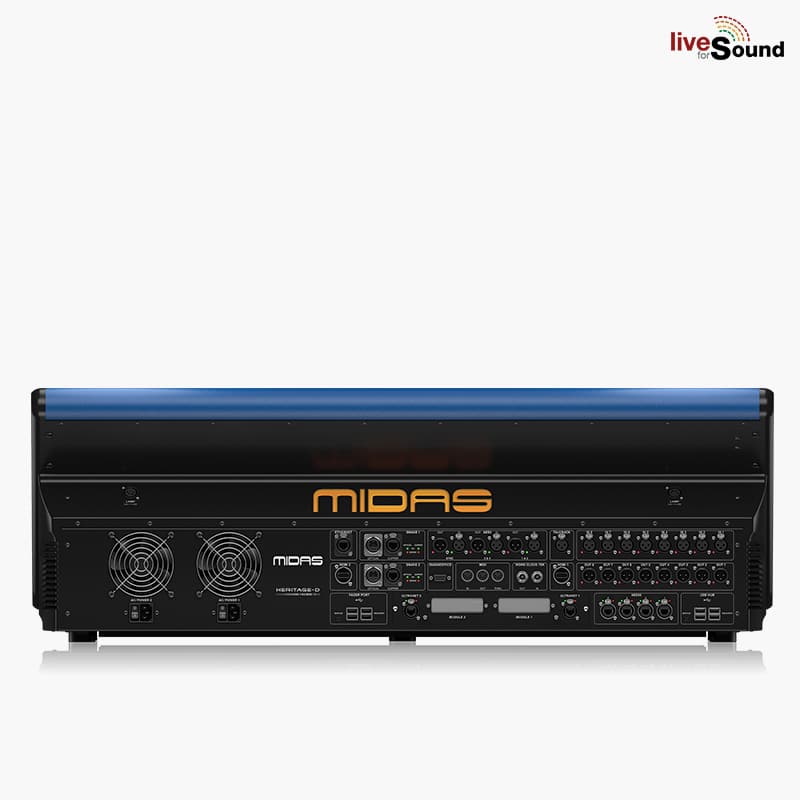

Connectors | Midas Microphone Preamplifier: 8 × XLR balanced |
Balanced Outputs: 8 × XLR balanced | |
Talk Connector: 1 × XLR balanced | |
Talkback Connector: 1 × XLR balanced | |
Headphone Connector: 2 × 1/4″ TRS (stereo) | |
Digital AES3 I/O (XLR): 2 in / 2 out | |
AES50 Ports: 4 (Klark Teknik SuperMAC, 100 Mbit/s) | |
Snake (Copper): 2 × HyperMac (192 ch bi-directional) on RJ45 XLR | |
Snake (Fibre): 2 × HyperMac (192 ch bi-directional) on Opticon XLR | |
CM1 Expansion Slots: 2 × slots (for AES50, Dante, MADI, USB) | |
Ultranet: 2 × Ultranet ports (up to 16 digital outputs/port) | |
Word Clock In: BNC, accepts TTL, 96 kHz square wave, 75 Ω | |
Word Clock Out: BNC, TTL level, 96 kHz square wave | |
AES3 Sync In: 1 × 3-pin XLR | |
AES3 Sync Out: 1 × 3-pin XLR | |
External (Ethernet) Connector: RJ45 XLR | |
Monitor Output: 2 × HDMI (supports 1920×1080p 59.94/60Hz 16:9, 720×480p 59.94/60Hz 16:9) | |
USB 3.0 Type A Hub: 4 × 5 V ⎓ 900 mA | |
USB 3.0 Type A (Fader Port): 4 × 5 V ⎓ 900 mA | |
USB 2.0 Type A (Front Surface): 1 × 5 V ⎓ 500 mA | |
Diagnostics Port: Serial port | |
MIDI: In, Out, Thru (5-pin DIN) | |
Lamp: 2 × 12 V DC, 5 W, 4-pin | |
IEC Mains Socket w/ Switch: 2 | |
Input / Output Characteristics | Surface Input Impedance: 10 kΩ |
Non-Clip Max Input Level: +24 dBu | |
Input Gain: -2.5 dB to +45 dB (stepped) plus -40 dB to +20 dB digital trim | |
Phantom Power: +48 V (switchable per input) | |
Talk Mic Impedance: 5 kΩ | |
Talk Mic Gain: +15 dB to +60 dB | |
Talk Mic Max Level: +6 dB | |
Talkback Impedance: 20 kΩ | |
Talkback Gain: ∞0 to +10 dB | |
Talkback Max Level: +21 dBu | |
Surface Output Impedance: 50 Ω | |
Surface Output Gain: 0 dB | |
Surface Output Max Level: +21 dBu | |
Dynamic Range: 106 dB (22 Hz–22 kHz, unweighted) | |
Max Voltage Gain: 100 dB (inputs→subgroups/masters), 106 dB (inputs→aux/matrix) | |
Crosstalk @ 1 kHz: -100 dB (adjacent channels) | |
Crosstalk @ 10 kHz: -90 dB (adjacent channels) | |
Fader/Pan Cut Off @ 1 kHz: -100 dB | |
Fader/Pan Cut Off @ 10 kHz: -100 dB | |
Headphones Output Impedance: 10 Ω | |
Headphones Max Output Level: +21 dBu | |
Displays | Main Display: 21″ LCD (1920×1080), captive touchscreen, up to 10 touches |
LCD Info Displays: 41 full-color LCDs, 24×24 mm, 240×240 px | |
Input Meters (30): 12-segment, -35 dBu to +20 dBu | |
Output Meters (7): 20-segment, -36 dBu to +21 dBu | |
Channel Comp Meters (28): 5-segment, -24 dBu to -1 dBu | |
Channel Gate Meters (28): 5-segment, -34 dBu to -5 dBu | |
Comp Meter (1): 12-segment, -23 dBu to -1 dBu | |
Gate Meter (1): 12-segment, -34 dBu to -1 dBu | |
Controls | 100 mm Motorized Faders: 8 + 8 + 8 + 4 |
Touch-Sensitive Rotary Controls: 66 | |
Custom Controls: – | |
Fully Assignable Rotary Controls: 28 + 8 | |
Fully Assignable Backlit Buttons: 28 + 8 + 12 | |
Headphone Controls: A and B, min to max | |
Talk: Talk gain, min to max | |
Physical | Operating Temp Range: 5 °C to 45 °C (41 °F–113 °F) |
Storage Temp Range: -20 °C to 60 °C (-4 °F–140 °F) | |
Dimensions (H×W×D): 352 × 1028 × 719 mm (13.9″ × 40.5″ × 28.3″) | |
Weight (Without Flight Case): 43.2 kg (95.0 lbs) | |
Weight (With Flight Case): 147 kg (103.6 lbs) |
