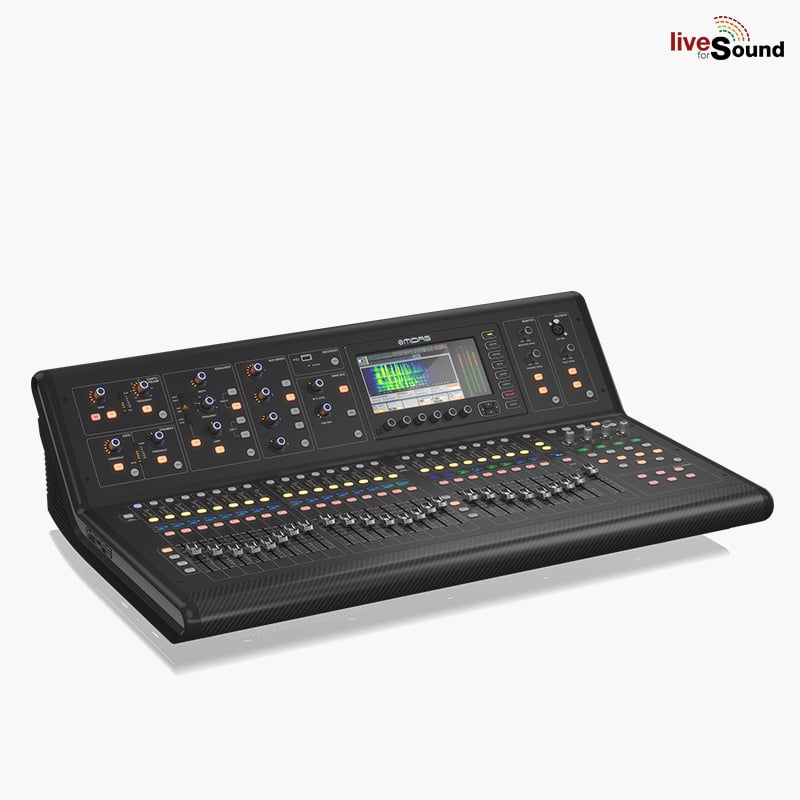

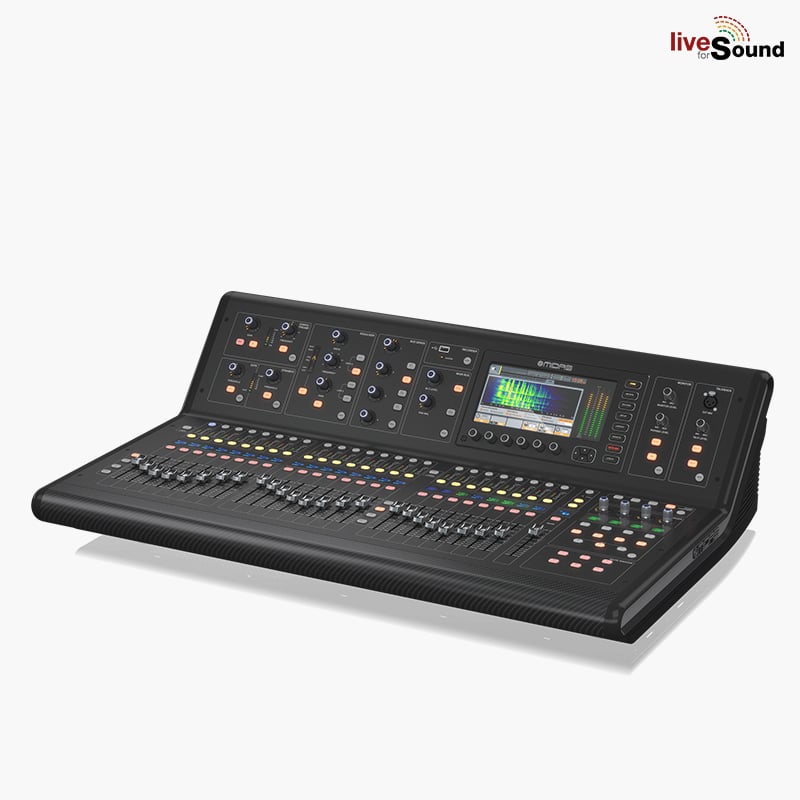

MIDAS M32 LIVE มิกเซอร์ดิจิตอล 40 ช่อง
Designing A Future Classic
Our goal for M32 LIVE was to combine the best of classic British console designs with advanced modern technology to completely redefine what a medium-format live console can offer.
We began the industrial design process by drawing inspiration from a somewhat unexpected source – the luxury and high-performance car industry.
Industry-Leading 192 kHz Precision
The groundbreaking M32 LIVE console combines legendary Midas sound quality with advanced digital technology, future-proof floating point audio engine, extremely low-latency design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console. M32 LIVE features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials include carbon fibre provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.
The M32 LIVE utilises award-winning Midas PRO Series microphone preamplifiers and the custom-designed Midas PRO motorised faders that are rated for 1 million life cycles-three times more than other leading consoles.
The Midas M32 LIVE is a future-forward console that completely raises the bar for live mixing.
Legendary Midas Sound Quality
While the Midas M32 LIVE design, styling, and construction will surely turn a lot of heads, it’s the sound that matters most to engineers and performing artists. And that’s where M32 LIVE shines even brighter – as the latest in a long line of pristine-sounding Midas consoles, it descends from a celebrated lineage that literally set the standard in electrical design and sound quality. Ever since Midas consoles first found fame 40 years ago with acts like Billy Joel, Yes, The Beach Boys, Pink Floyd and others, the Midas legacy has always been about uncompromising quality and the ultimate in sound reproduction.
Backing the analogue input section are audiophile Cirrus Logic multi-channel 192 kHz capable A/D converters, which boast a 114 dB dynamic range, ensuring impressively low distortion and low noise performance.
Industry-Leading Technology for More than 40 years
Midas’ experience spans over 40 years at the very top end of the live audio industry on countless world tours by the greatest artists and the most prestigious events. 40 years of relentless research, development with 300 of the world’s best engineers plus complete control over the manufacturing process. This is what powers the M32 LIVE.
Above all, M32 LIVE is designed to put the power of digital in your hands, without compromise. Midas’ singular focus on a matchless value proposition means M32 LIVE integrates advanced features such as motorised faders, LCD scribble strips, integrated personal monitor mixing and true high-speed digital audio networking as standard features.
Klark Teknik DN32-LIVE
The DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for Midas M32 and Behringer X32 mixers provides 32-channel bidirectional audio I/O via USB 2.0 for both live performance and studio recording, plus comprehensive remote operation of your DAW via HUI/Mackie Control emulation. Dual SD/SDHC slots allow fully independent recording/playback of up to 32 channels of uncompressed WAV files in consistent sessions – to capacity of the SD cards. Now even without a computer, you can capture multichannel live or session tracks, perform virtual sound checks, add backing tracks, set and manipulate markers, and enjoy full remote operation via PC, Android * or iPad * apps, and X-TOUCH control surfaces.
Your “Mind-to-Sound” Interface
M32 LIVE is your “mind-to-sound” interface – the intersection of creativity and production.
Whether you’re accustomed to digital mixers or not, the M32 LIVE’s intuitive user interface offers a fluid mixing experience that instantly feels like home.
From the first moments of use, the workflow unfolds in a way that strips away obstacles, distractions, and hesitation.
Channel Strip
The M32 LIVE Channel Strip puts the most important channel processing parameters into one section so that no matter which channel you are working on, the controls are always the same.
This highly-efficient layout stems from Midas decades of console design and input from our users. Optimized control illumination ensures a clear indication of levels or status from any viewing angle.
Illuminated rotary encoders and switches give you control of preamp settings, frequency shelving, dual dynamics sections, as well as multi-mode fully parametric EQ, bus sends, main, mono and stereo panning.

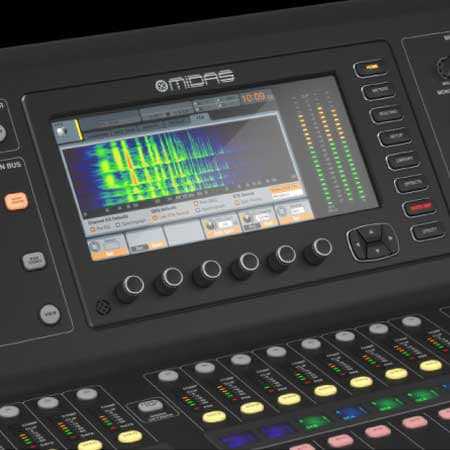

7″ Main Display
M32 LIVE’s 7″ day-viewable color TFT (Thin-Film Transistor) display shows the setting parameters you need when you need them.
Selected for its high-contrast performance and outdoor visibility, TFT is ideal for concert and open air festival venues. Flanked by high-precision, context-sensitive tactile encoders, the screen comes to life and immediately reports in high definition all adjustments applied to a wide range of parameters.
Intelligent design puts control of vital functions such as Effects, Metering, Routing and much more 1 or 2 button presses away.
Sends On Fader
M32 LIVE brings the convenience of digital mixing to your Aux and output bus mixes too, thanks to its integrated Sends on Fader feature. This incredible function allows you to build powerful, dedicated sub-mixes for monitor, secondary zone feeds, and much more – all without affecting the front of house mix or levels.
The M32 LIVE allows you to send your choice of signals to any Aux or output bus and then dial in the perfect mix via the channel faders.
The console remembers where you set the faders and instantly recalls them when you select a bus for quick adjustments.
DCA Groups
DCA (Digitally Controlled Amplifier) groups allow control over several signals at once without actually mixing them into a subgroup bus. M32 LIVE’s 8 DCA groups let you control multiple signals via a single fader, such as the entire drum mix, the horn section, or the backup vocalists, etc.
DCA control affects the FOH mix, while allowing the individual buses to remain unchanged. The result is a customizable workflow that provides maximum flexibility, but still allows individual buses and subgroups to serve the purpose they were intended for, such as zone sends, broadcast feeds, etc.
View Function
Across the M32 LIVE you’ll find 11 strategically placed View buttons associated with various functions. These buttons enable immediate access to information about that specific function.
For instance, if you press the View button in the Equaliser section, information for that channel’s EQ is instantly shown on the main display, providing in-depth editing of all related parameters.
This direct access to visual fine-tuning gives the engineer a level of control previously available only on consoles costing exponentially more.
Assign Section
While some digital consoles offer a few user-definable controls, M32 LIVE’s Assign section sets a new standard by providing a total of 36 fully customizable controls on three separate layers.
As with channels and buses, individual Scribble Strips are provided for immediate identification. Buttons can be defined to toggle parameters on/off, adjust timing of effects by tapping, or jump to specific screen views.
Rotary encoders with LED collars can be assigned to specific channel parameters, or to additional parameters in the Dynamics section relevant to the current channel selection.
คุณสมบัติ:
- Live performance and studio recording digital console with up to 40 simultaneous input channels
- 32 award-winning Midas PRO microphone preamplifiers
- 25 time-aligned and phase-coherent mix buses
- AES50 networking allows up to 96 inputs and 96 outputs
- 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
- Up to 3 hours of 32 channel PCM recording in one session – stored as uncompressed WAV files
- High-performance carbon fibre, aluminium and high-impact steel structure
- 40 bit floating point digital signal processing
- 8 DCA and 6 mute groups
- 8 digital signal processing effects engines
- 25 Midas PRO motor faders
- Daylight viewable 7″ full colour TFT display screen
- 32 x 32 channel USB 2.0 audio interface
- DAW remote control emulations of Mackie Control and HUI protocols
- Optional wireless remote control with Midas Apps for iPhone and iPad
- Auto-ranging universal switch-mode power supply
