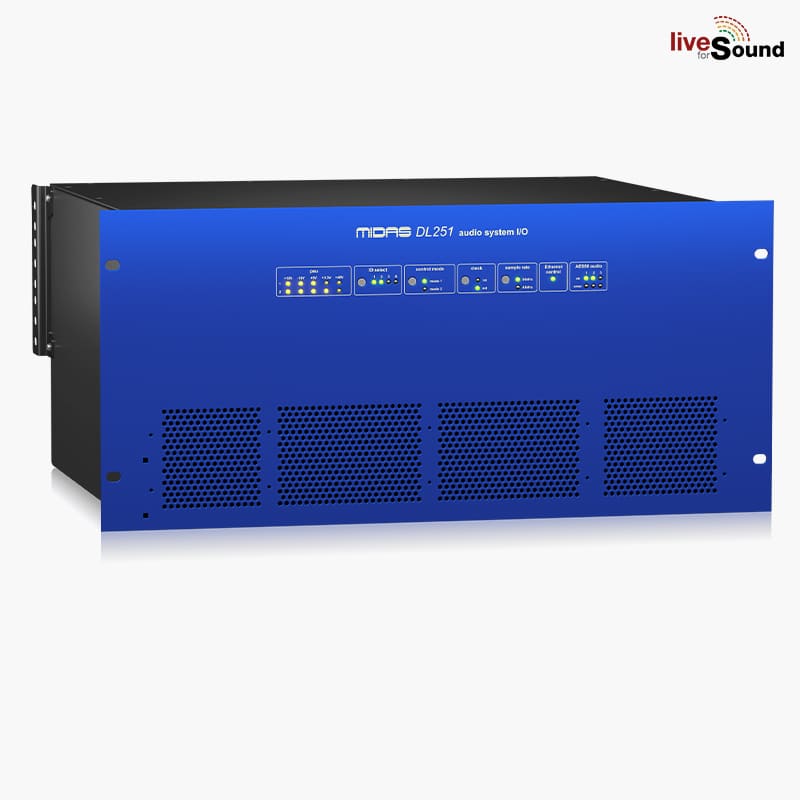

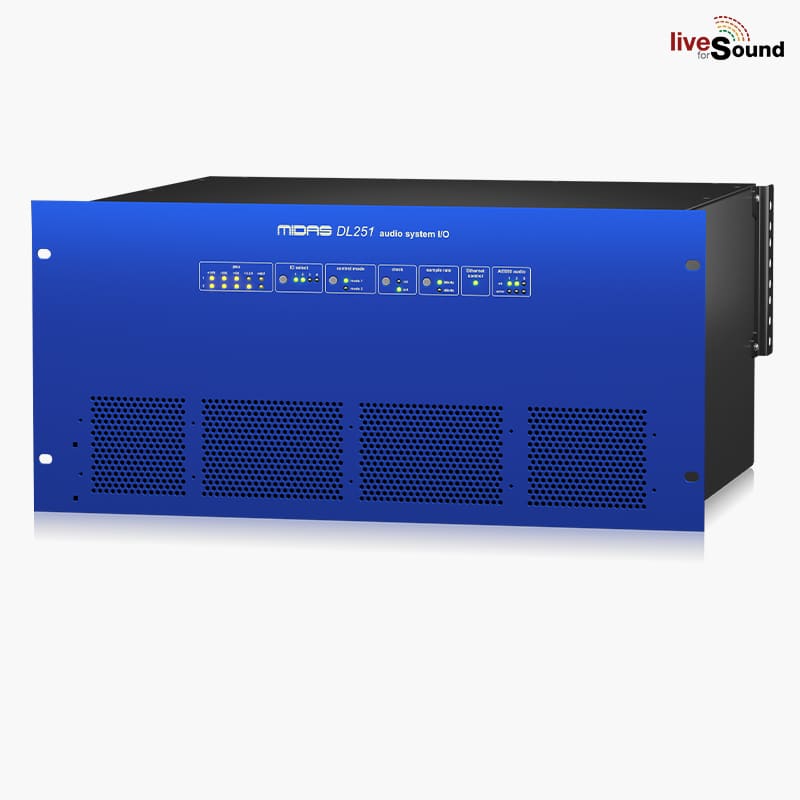

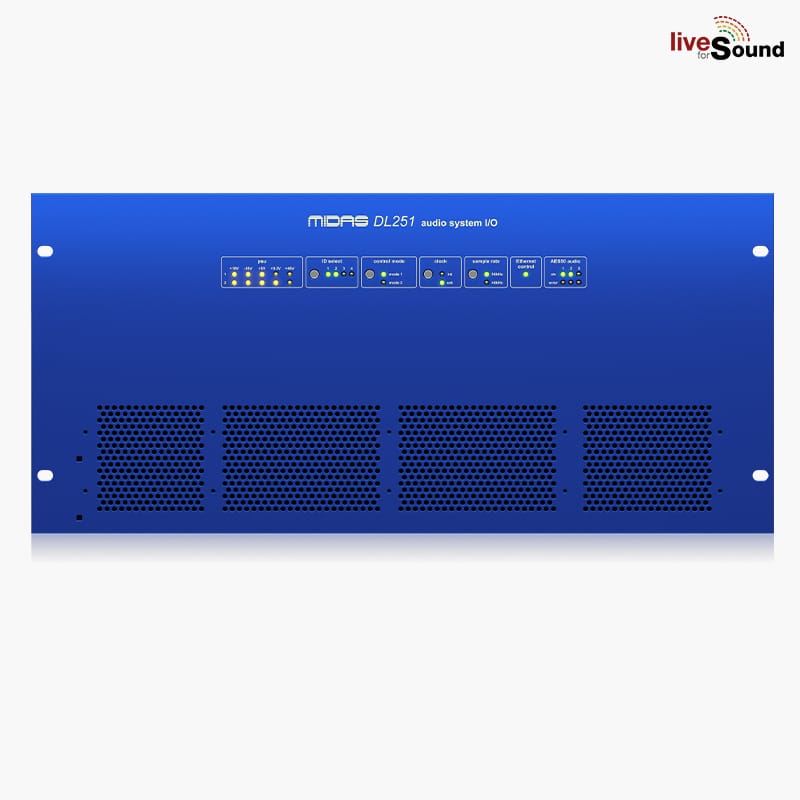

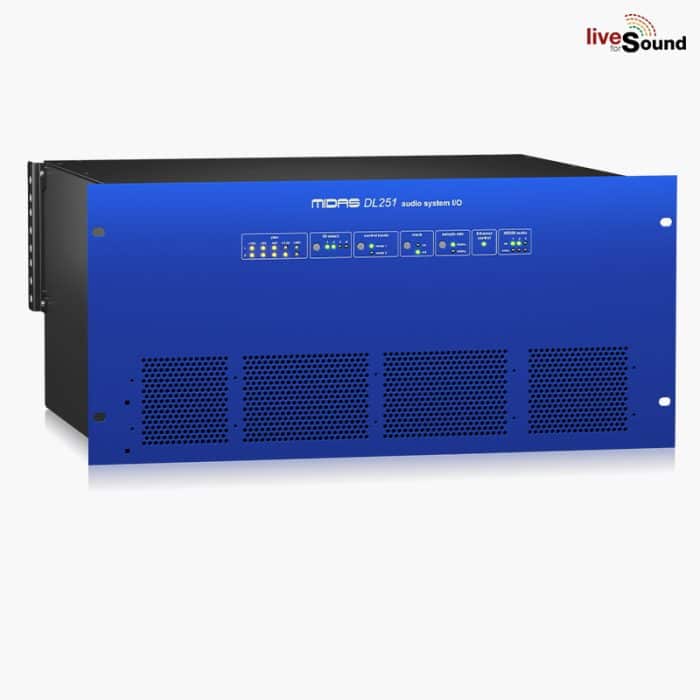

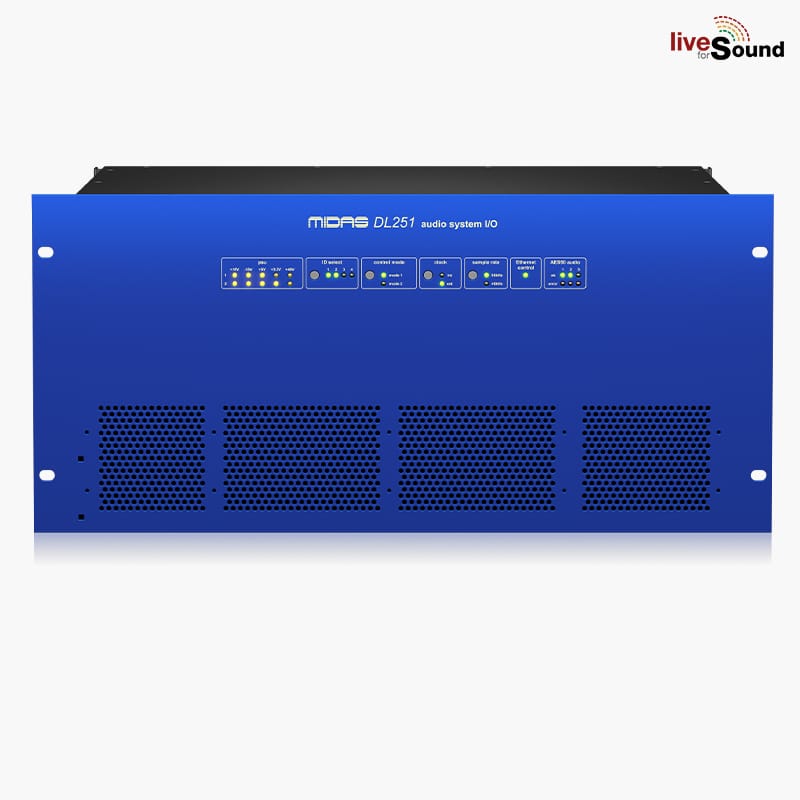

MIDAS DL251 สเตจบ๊อกซ์ 48 in/ 16 out

Original price was: 199,000฿.Current price is: 152,500฿.

MIDAS DL251 ดิจิตอลสเตจบ๊อกซ์ I/O อินเตอร์เฟส Stage Box Midas DL251  48 Input, 16 Output Stage Box with 48 MIDAS Microphone Preamplifiers

รหัสสินค้า: MID-DL251 หมวดหมู่: ป้ายกำกับ: ,
รายละเอียดเพิ่มเติม

MIDAS DL251 ดิจิตอลสเตจบ๊อกซ์

MIDAS DL251 เป็นสเตจบ๊อกซ์ที่มาพร้อมกับ 48 ช่องสัญญาณอินพุตไมโครโฟนและ 16 ช่องสัญญาณเอาต์พุต รองรับการเชื่อมต่อผ่าน AES50 ทำให้สามารถใช้เป็น Digital Snake ในระบบเสียงได้อย่างราบรื่น โดดเด่นด้วยปรีแอมป์ Midas ที่มีชื่อเสียงเรื่องคุณภาพเสียงใสและรองรับ +48V Phantom Power เหมาะสำหรับการใช้งานกับมิกเซอร์ดิจิตอลของ MIDAS และ BEHRINGER

คุณสมบัติ :

  • 48 ช่องไมโครโฟน/ไลน์อินพุต พร้อมปรีแอมป์ Midas ที่ให้เสียงคุณภาพสูง
  • 16 ช่องสัญญาณออกแบบ Balanced XLR รองรับการเชื่อมต่ออุปกรณ์เสียงมืออาชีพ
  • รองรับ AES50 จำนวน 3 พอร์ต เชื่อมต่อมิกเซอร์ดิจิตอลได้อย่างเสถียร
  • รองรับการตั้งค่า Sampling Rate ได้ทั้ง 48 kHz และ 96 kHz
  • พอร์ตเชื่อมต่อ MIDI In, Out, Thru รองรับการควบคุมอุปกรณ์เสียงผ่าน MIDI
  • ฟังก์ชัน Mute All Outputs สำหรับการเปลี่ยนสายสัญญาณระหว่างการแสดง
  • ระบบ Dual Redundant Power Supply ช่วยเพิ่มความมั่นใจในการใช้งาน
  • โครงสร้างแข็งแรง ออกแบบให้ติดตั้งในแร็คขนาด 5U เหมาะสำหรับงานแสดงสดและงานติดตั้งถาวร
สเปค
General Statistics
XLR connections

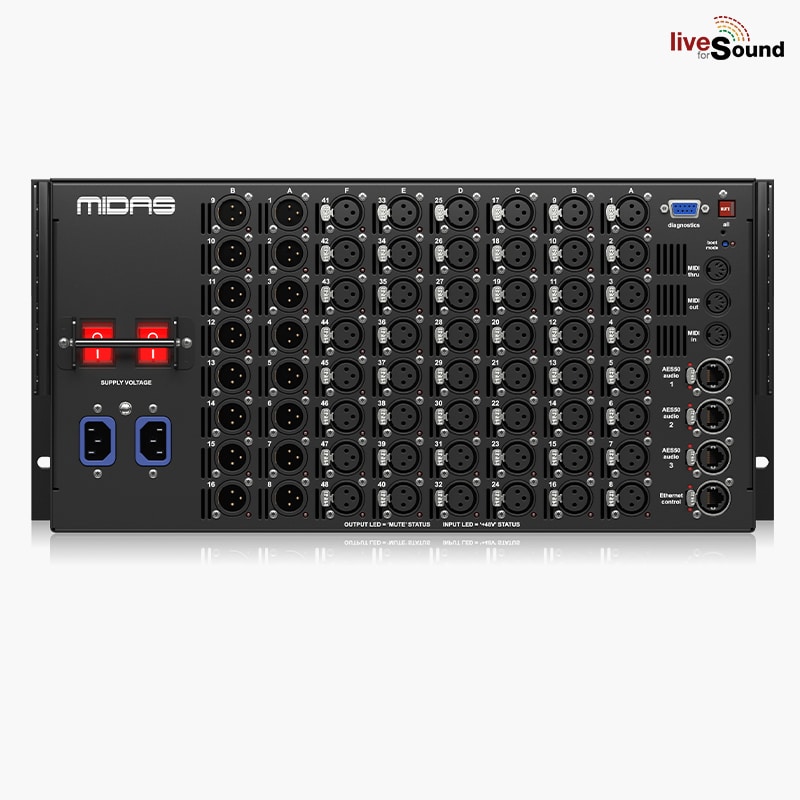

1 x 5U rack I/O box houses: 48 x (XLR) mic/line inputs 16 x (XLR) line outputs
Resilience N + 1 cable redundancy and dual redundant PSUs
General Specifications
Sampling rate 48 kHz, 96 kHz
Dynamic range 107 dB, 22 Hz to 22 kHz (no pre-emphasis)
Maximum gain 45 dB
Crosstalk @ 1 kHz -100 dB physically adjacent input channels
Crosstalk @ 10 kHz -90 dB physically adjacent input channels
Dimensions 5U x 414 mm deep
Net weight 10 kg
Shipping weight 18 kg
Power requirements 100 to 240 VAC, 50 to 60 Hz
Power consumption at 115 V 1 PSU: 85 W, 85 VA 2 PSU: 110 W, 110 VA
Power consumption at 230 V 1 PSU: 90 W, 100 VA 2 PSU: 110 W, 135 VA
Operating temperature range +5°C to +40°C
Storage temperature range -20°C to +60°C
System Inputs and Outputs
I/O box inputs
Connector 3-pin XLR balanced
A/D converter 24-bit, 96 kHz and 128 times oversampling
Box analogue outputs
Connector 3-pin XLR balanced
D/A converter 24-bit, 96 kHz and 128 times oversampling
MIDI
MIDI connector In, Out and Thru on 5-pin DIN (for use with Midas consoles only)
48 kHz I/O digital system inputs and outputs
System connector (1) 1 x AES50 (48 channels of bidirectional digital audio) on etherCON XLR
Redundant connector (2) 1 x AES50 (48 channels of bidirectional digital audio) on etherCON XLR providing redundant back-up
Additional connector (3) Not used
96 kHz I/O digital system inputs and outputs
System connector (1 and 2) 2 x AES50 (24 channels of bidirectional digital audio per connection) on etherCON XLR
N+1 connector (3) 1 x AES50 (24 channels of bidirectional digital audio on etherCON XLR providing redundant back-up
Input and Output Characteristics
Analogue input characteristics
Input I/O Box
Load Z 10k
Gain -2.5 dB to +45 dB
Max. level +24 dBu
Connector XLR
Analogue output characteristics
Output I/O Box
Source Z 50 Ω
Gain 0 dB
Max. level +21 dBu
Connector XLR
48 kHz digital I/O characteristics
Type AES50
Channels 48
Data length 24-bit
I/O Bidirectional
Description notes Conforms to AES50-2011
Connector etherCON XLR
96 kHz digital I/O characteristics
Type AES50
Channels 24
Data length 24-bit
I/O Bidirectional
Description notes Conforms to AES50-2011
Connector etherCON XLR
ดาวน์โหลด

Data Sheet

เงื่อนไข
  • ขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
ข้อมูลเพิ่มเติม
Brand

MIDAS

Stage Box Type

Digital Stage Box

Compatibility

AES50

Channels

16 Outputs

,

48 Inputs

Inputs - Mic Preamps

48 x Midas Mic Preamplifiers

Phantom Power

+48V

Outputs - Main

16 x XLR

Data I/O

3 x AES50

Computer Connectivity

Remote via Ethernet

MIDI I/O

In, Out, Thru

Rackmountable

5U

,

Yes

Power Source

100-240 VAC @ 50-60Hz

Height

22.1 cm

Depth

41.4 cm

Width

48.3 cm

Weight

10 kg
