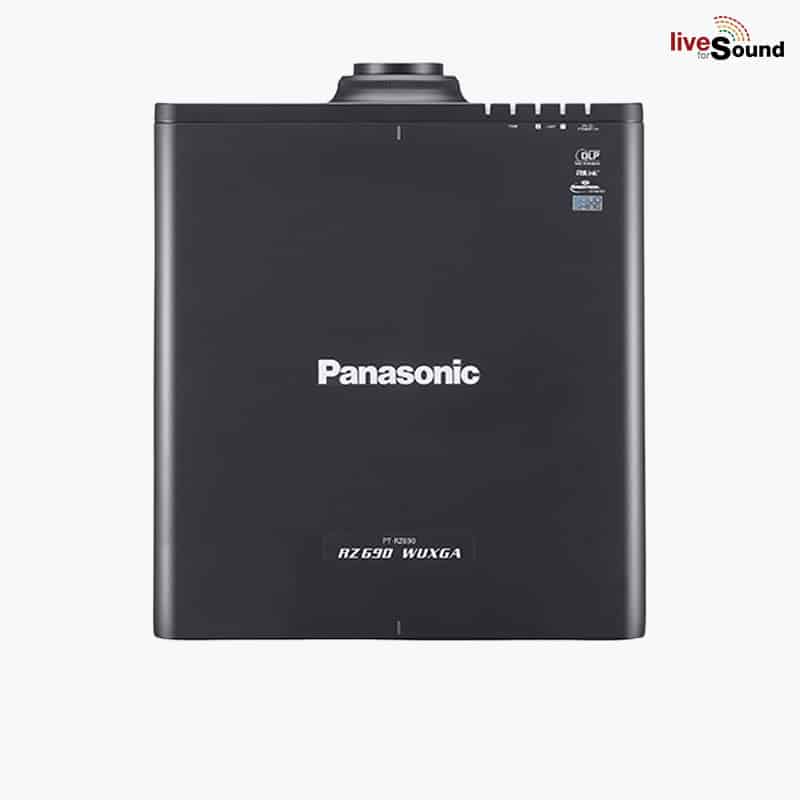

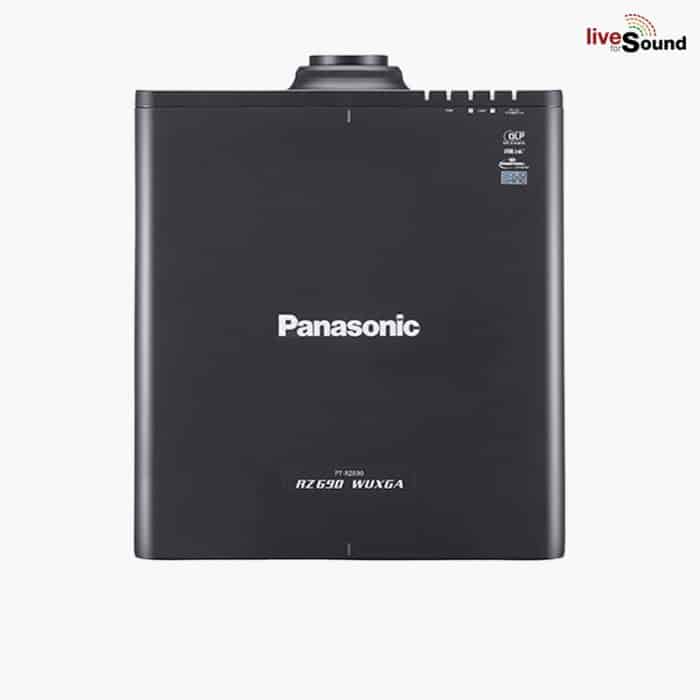

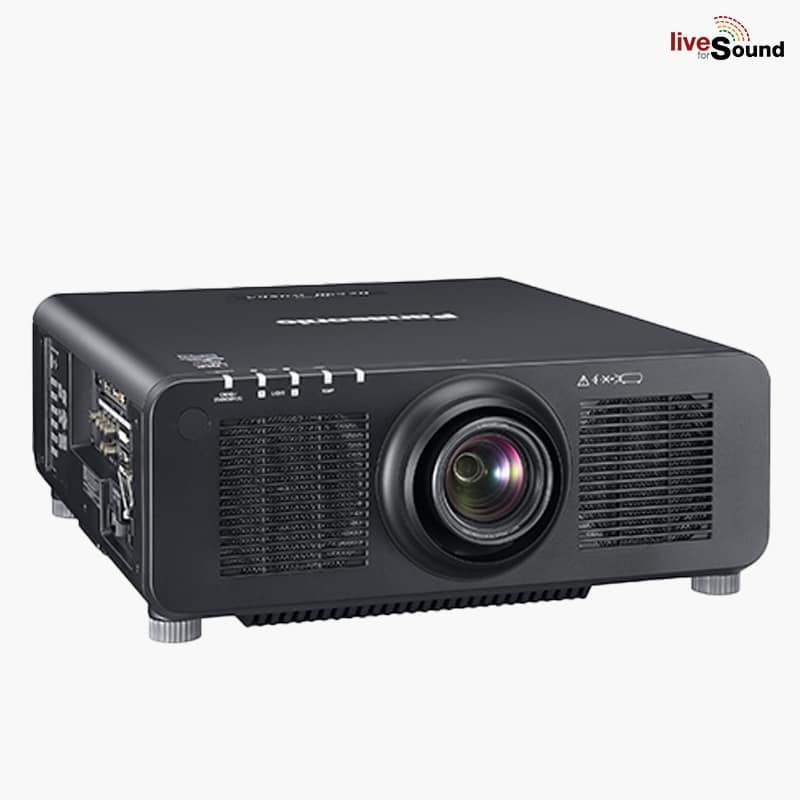

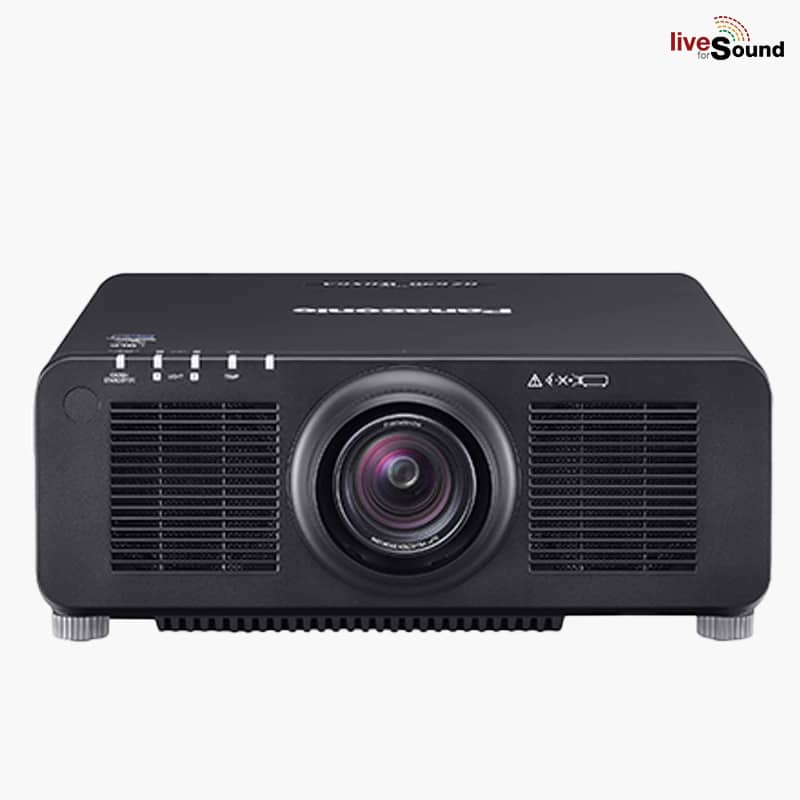

Panasonic PT-RZ690LB โปรเจ็คเตอร์ WUXGA Laser 6,000 ลูเมน

Projector type

1-Chip DLP TMprojector

Display method

DLP TMchip x 1, DLP TM projection system

Display Device -> Panel size

17.0 mm (0.67 in) diagonal (16:10 aspect ratio)

Display Device -> Number of pixels

2,304,000 (1920 x 1200 pixels)

Light source

Laser diodes

Light output*1 *2 *3

6,000 lm [NORMAL]

Light output (ANSI)*4

6,000 lm [NORMAL]

Light output (Center)*5

6,200 lm (Center)

Time until light output declines to 50 %-> NORMAL*6

20,000 hours [NORMAL]

Time until light output declines to 50 %-> ECO*6

24,000 hours [ECO]

Time until light output declines to 50 %-> QUIET*6

20,000 hours [QUIET]

Resolution

1920 x 1200 pixels

Contrast Ratio (typ.)*3

10,000:1 (Full On/Full Off, Dynamic Contrast [3])

Screen size (diagonal)

1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055,2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020,16:10 aspect ratio

Center-to-corner zone ratio*3

90 %

Lens

PT-RZ690: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7mmPT-RZ690L: Optional powered zoom/focus lenses

Lens shift -> Vertical(from center ofscreen)

+50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)

Lens shift -> Horizontal(from centerof screen)

+30 %, -10 %(+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)

Keystone correction range

Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035),Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)

Keystone correction range withoptionalET-UK20 Upgrade Kit

Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 °with ET-DLE105/ET-DLE085/ET-DLE055),Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously,correction cannot be made exceeding a total of 55 °.

Installation

Ceiling/floor, front/rear, free 360-degree installation

Terminals -> SDI IN

BNC x 1 : 3G/HD/SD-SDI input

Terminals -> HDMI ™IN

HDMI TM19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5)

Terminals -> DVI-D IN

DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single linkonly)

Terminals -> COMPUTER IN（RGB IN）

RGB x 1 (BNC x 5): (RGB/YPBPR/YCBCR)

Terminals -> COMPUTER IN（D-SUB15pin）

D-sub HD 15-pin (female) x 1: (RGB/YPBPR/YCBCR)

Terminals -> SERIAL/MULTI-PROJECTOR SYNC IN

D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

Terminals -> SERIAL/MULTI-PROJECTOR SYNC OUT

D-sub 9-pin (male) x 1 for link control

Terminals -> REMOTE 1 IN

M3 x 1 for wired remote control

Terminals -> REMOTE 1 OUT

M3 x 1 for link control (for wired remote control)

Terminals -> REMOTE 2 IN

D-sub 9-pin (female) x 1 for external control (parallel)

Terminals -> DIGITAL LINK IN / LAN

RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT TMcompliant), PJLinkTM(Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Colorcompatible, 4K/60p signal input*5

Terminals -> LAN

RJ-45 x 1 for network connection, PJLink TM (Class 2) compatible, 10Base-T/100Base-TX,Art-Net compatible

Power supply

AC 100–240 V, 50/60 Hz

Maximum power consumption*9 *10

565 W (5.9–2.4 A)

On-mode powerconsumption(Operating mode) ->Normal*9

[NORMAL] 490 W

On-mode powerconsumption(Operating mode) -> Eco*9

[ECO] 395 W
