SPECIFICATIONS |

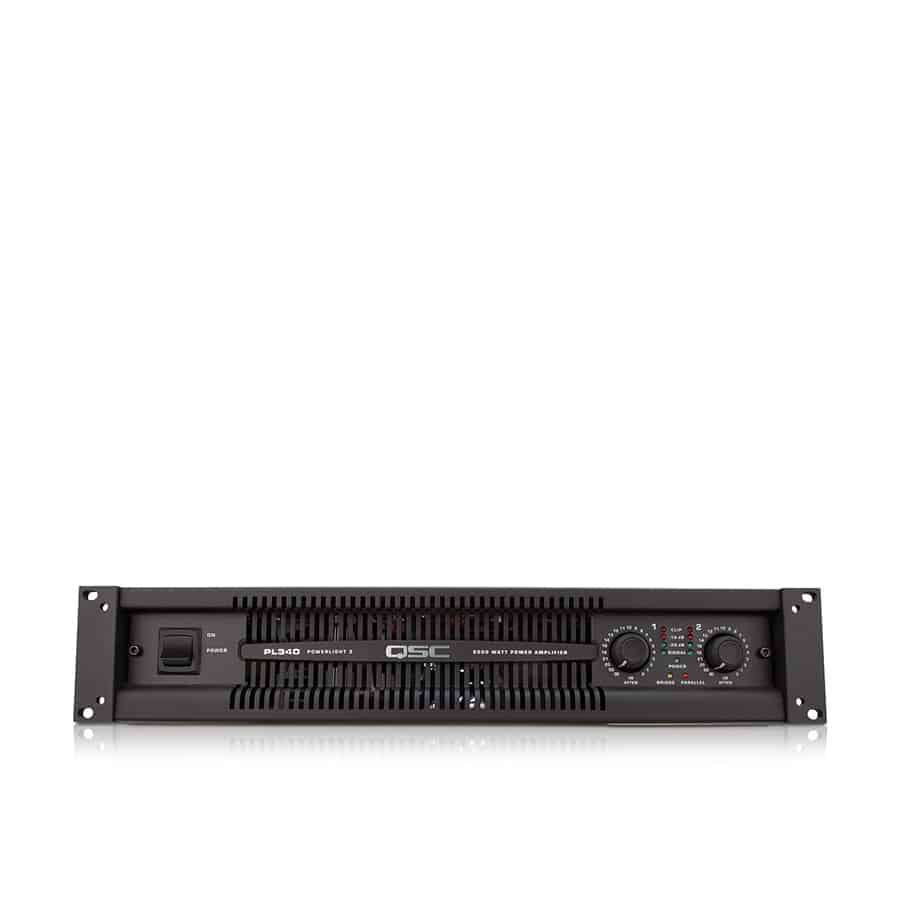

PL380 |
|
OUTPUT POWER PER CHANNEL, STERO MODE, both channels driven |
8Ω EIA 1 kHz 1% THD |
1500 W |
4Ω EIA 1 kHz 1% THD |
2500 W |
2Ω EIA 1 kHz 1% THD |
4000 W* |
|
OUTPUT POWER, BRIDGE MONO MODE |
8Ω EIA 1 kHz 1% THD |
5000 W |
4Ω EIA 1 kHz 1% THD |
8000 W* |
Typical Distortion |
|
(20 Hz–3 kHz, 3 dB below clip, or 20 Hz–5 kHz, 10 dB below clip, or 20 Hz–20 kHz, 20 dB below clip) |
8 ohms |
0.01-0.03% |
4 ohms |
0.03-0.06% |
2 ohms |
0.10% |
Maximum Distortion |
0.20% |
(20 Hz–20 kHz, 1 dB below rated power) |
4 to 8 ohms |
Frequency Response (8 ohms) |
20 Hz–20 kHz, ±0.2 dB |
Noise (20 Hz–20 kHz, 32 dB Gain) |
-104 dB |
Dynamic Headroom (4 ohms) |
2 dB |
Damping Factor (8 ohms) |
200 |
Output Circuitry |
Class D |
Input Sensitivity |
|
26 dB Setting |
5.27V |
32 dB Setting |
2.67V |
Maximum Gain (1.2V setting) |
39.1 dB |
Maximum Input Level |
|
1.2V setting |
10 V (+22 dBu) |
32 dBu setting |
22 V (+29 dBu) |
26 dBu setting |
25 V (+30 dBu) |
AC Power Requirements ** |
|
120V 50/60 Hz |
18 A |
230V 50 Hz |
11:00 AM |
Cordset |
|
120V 50/60 Hz |
NEMA L5-30P |
230V 50 Hz |
CEE 7/7 16A |
Chassis Power Connector |
32A PowerCon |
All Voltages |
Input Impedance |
> 10 kΩ balanced, or unbalanced |
Cooling |
Variable-speed fan, rear-to-front air flow |
Connectors (each channel) |
Input: XLR Male, XLR Female and 3-pin detachable terminal blocks (1 each per channel) |
Output: Neutrik Speakon® (ch 1 wired to both channels) and 5-way binding posts |
DataPort: HD-15, input signal in parallel with XLR input connectors |

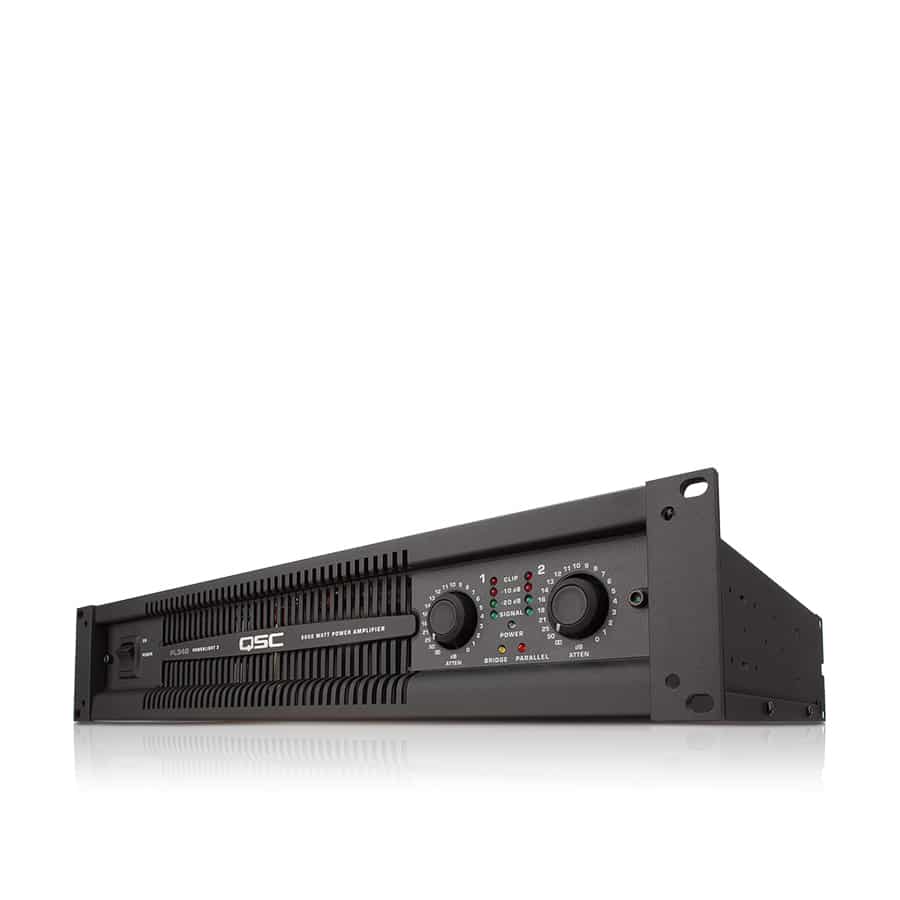

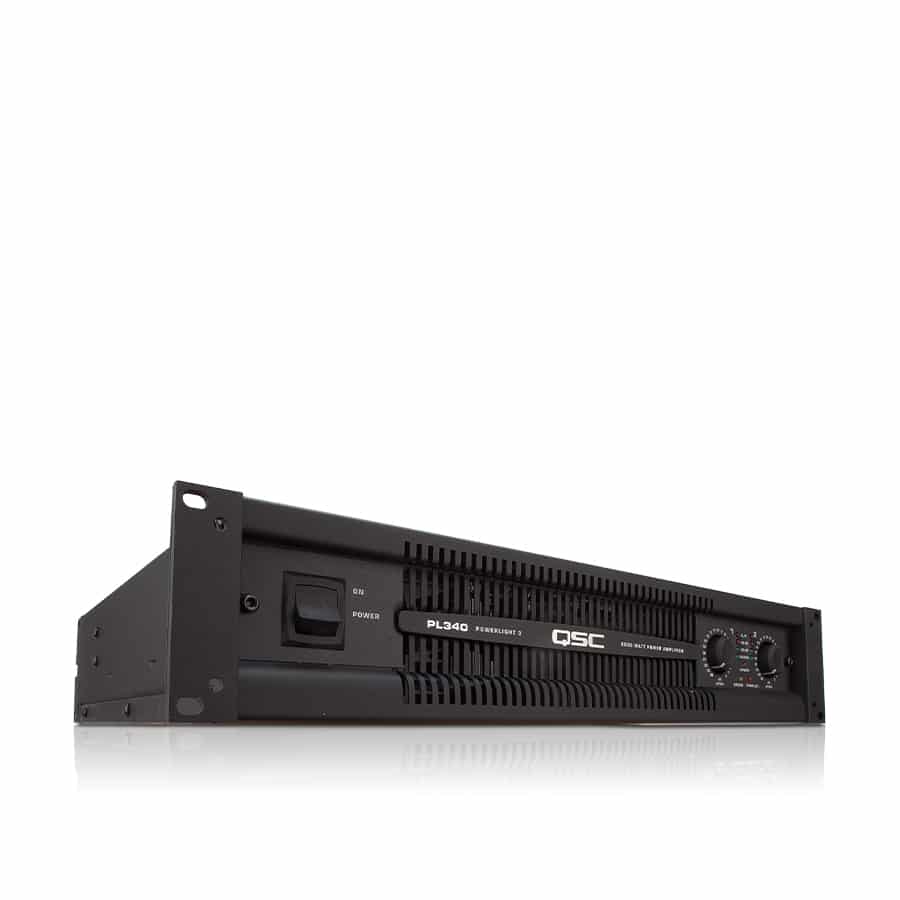

Front Controls |
AC power switch |
Gain controls, 21 detents, 1 dB steps (each channel) |
Front Indicators (LED color) |
Power (Blue) |
Bridged (Yellow) |
Parallel (Orange) |
Clip/Prot (Red × 2) |
Level -10 (Orange × 2) |
Level -20 (Green × 2) |
Signal -35 (Green × 2) |
Rear Controls (with LED indicators) |
Input Mode: Bridge (Yellow), Stereo (Green), or Parallel (Orange) |
Gain / Sensitivity: 26 dB (Orange), 32 dB (Green), or 1.2V (Yellow) |
High Pass (each channel): 3 Hz (Off), 30 Hz (Yellow), or 50 Hz (Orange) |
Clip Limiter (each channel): Off, on (Yellow) |
Amplifier and Load Protection |
Short circuit, open circuit, thermal, RF protection. On/off muting, DC fault shutdown, active inrush limiting |
Product Dimensions (H×W×D) |
89 (2 RU) × 483 × 397 mm |
3.5 (2 RU) × 19 × 15.63 in |
Carton Dimensions (H×W×D) |
610 × 560 × 178 mm |
24 × 22 × 7 in |
Net Weight |
11 kg / 24 lb |
Shipping Weight |
15.0 kg / 33 lb |
Agency Approvals |
UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions) |
