RCF EVOX JMIX8 ตู้ลำโพง Active Column

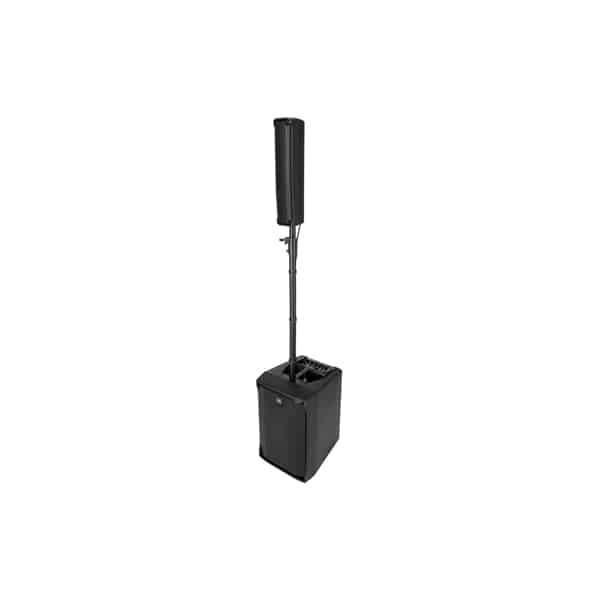

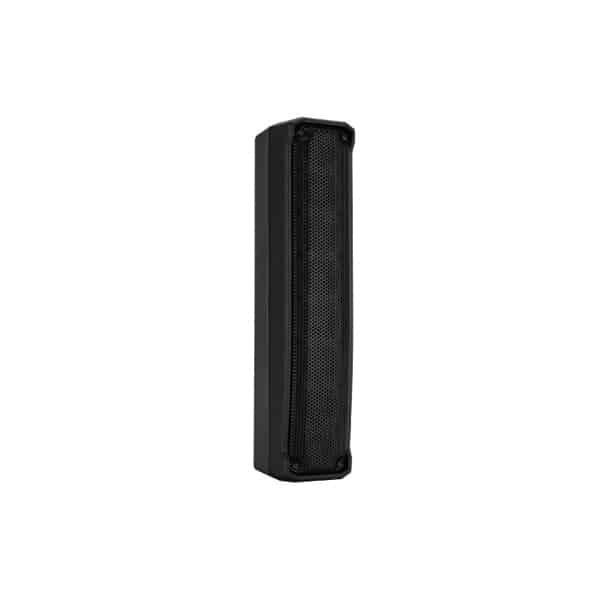

The black RCF EVOX JMIX8 is an active 12″ 2-way 1400W portable line array PA system with an 8-input mixer designed to deliver powerful sound projection and flexible multi-source mixing for musicians, presenters, and audio engineers in clubs, parties, and live stage applications. Class-D amplification pumps 1400W peak (700W RMS) through a 12″ high-excursion woofer and eight 2″ full-range drivers, resulting in a frequency response of 40 Hz to 20 kHz. The system design produces a 120° horizontal by 30° vertical coverage pattern.
คุณสมบัติ :
- For Live Stage, Theater, and DJ Setups

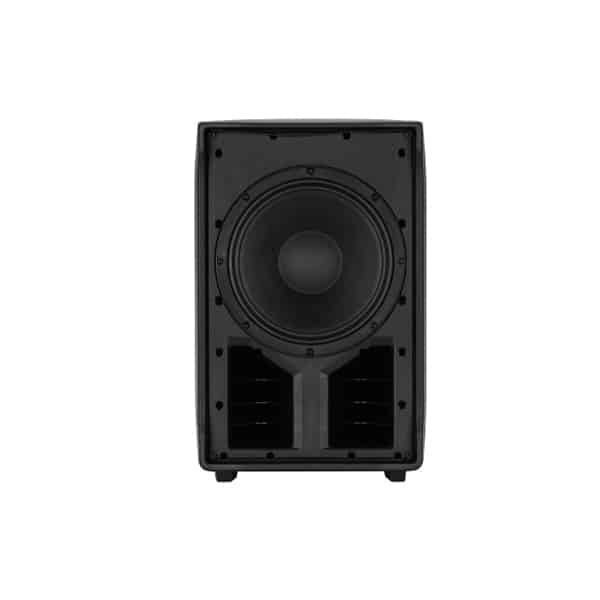

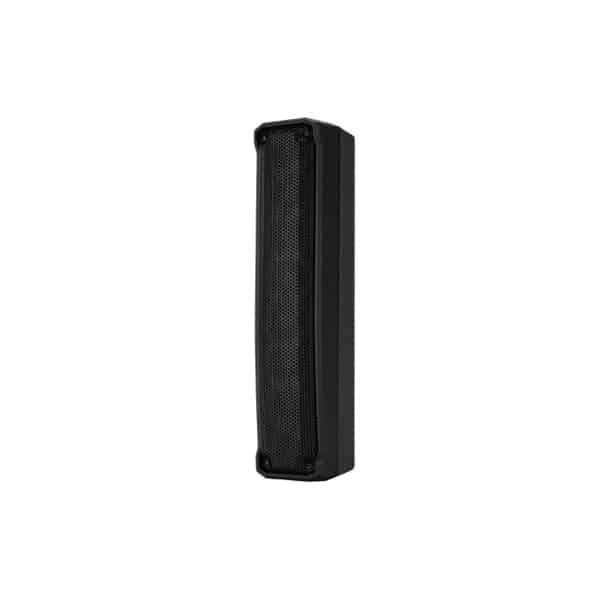

- 12″ Woofer, 8 x 2″ Drivers
- 40 Hz to 20 kHz Frequency Response
- 1400W Peak, 700W RMS, Class-D Amplification

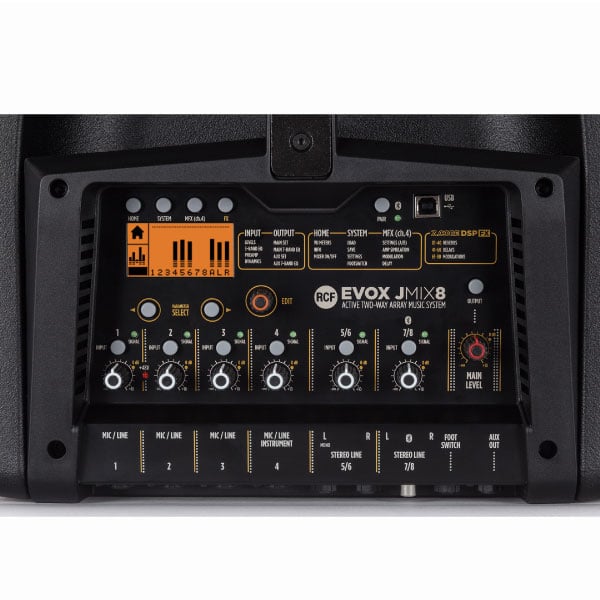

- Built-In Bluetooth Receiver, Integrated DSP Mixer with Effects
- XLR, RCA, and 1/4″ I/O
- Polypropylene Cabinet with Carry Handle, Includes speakON and Power Cables

Specification
Configuration | Active 2-Way |
Total Power Capacity | 1400 W Peak 700 W RMS |
Amplifier Power Rating | LF: 1000 W Peak 500 W RMS HF: 400 W Peak 200 W RMS |
Amplifier Class | Class-D |

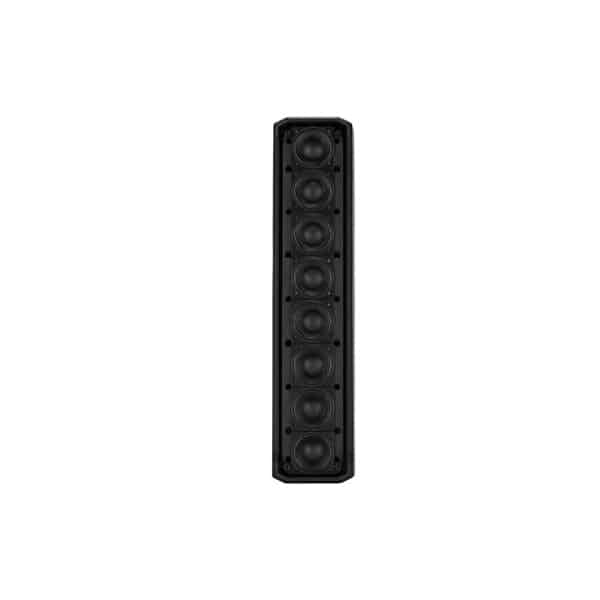

Full-Range Driver | 8 x 2″ / 5.1 cm |
HF Voice Coil | 1″ / 2.5 cm |

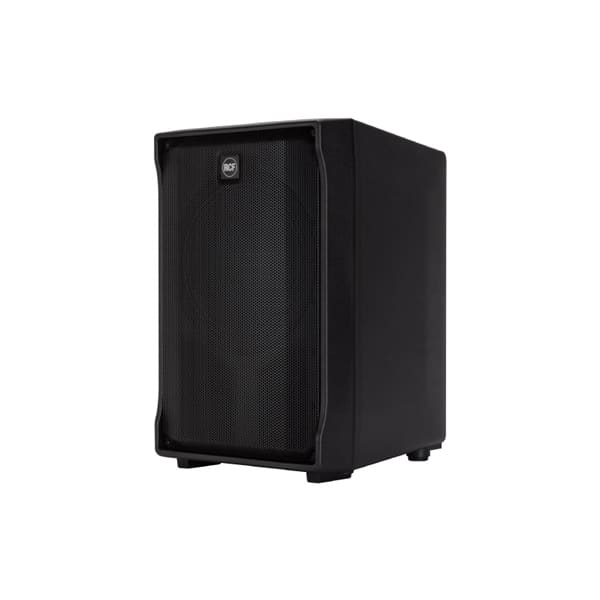

LF Driver | 1 x 12″ / 30.5 cm Woofer |
LF Voice Coil | 2.5″ / 6.4 cm |
Frequency Response | 40 Hz to 20 kHz |
Maximum SPL | 128 dB |
Coverage Angle | 120° H x 30° V |
Input Sensitivity | +4 dBu / -2 dBu |
Gain Range | 0 to 45 dB |
I/O Impedance | Mic Input: 3 kOhms Line Input: 11 kOhms Hi-Z Input: 1 MOhms Output: 150 Ohms |
THD | 0.004% |
Protections | RMS, Thermal |

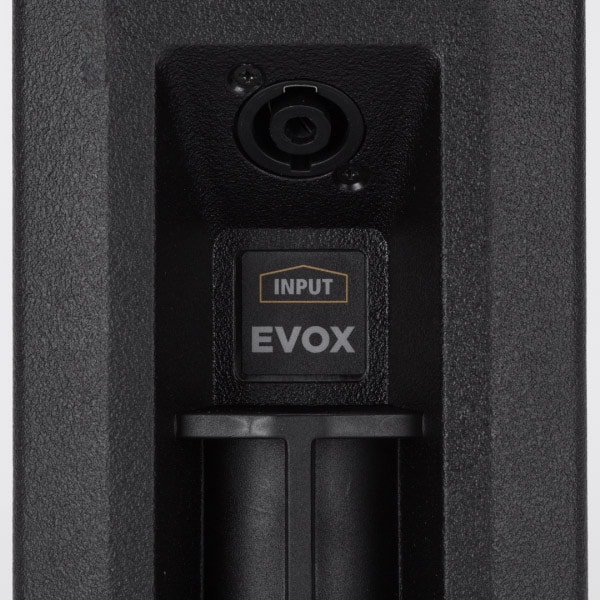

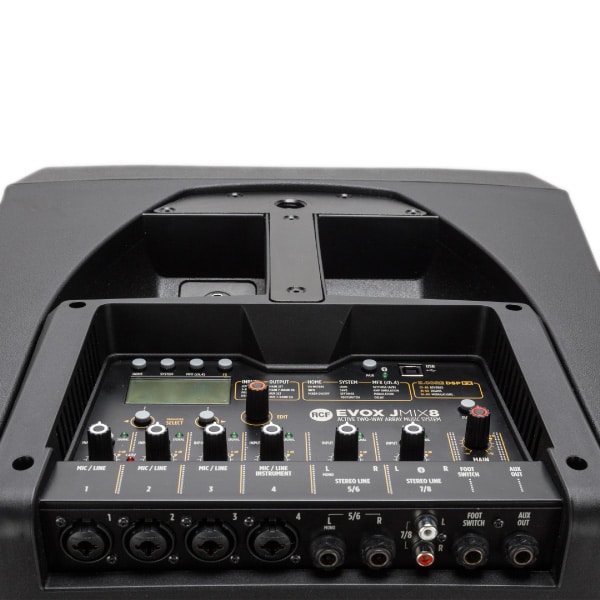

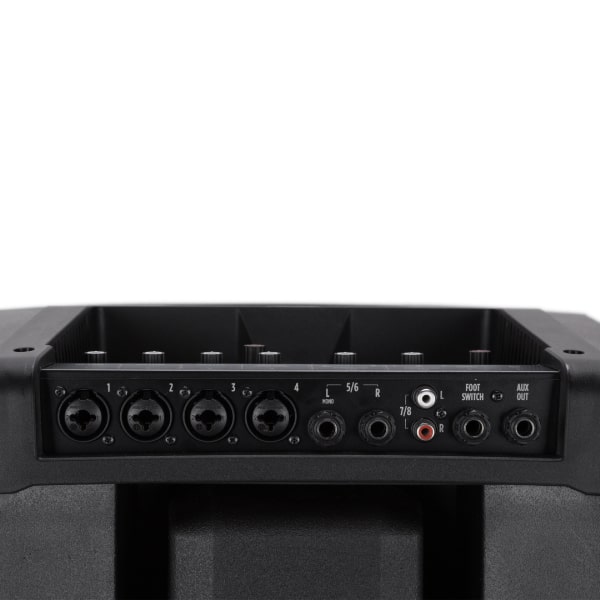

Audio I/O | 1 x 1/4″ Footswitch Input 4 x Combo XLR-1/4″ 1 x XLR 3-Pin Female Input 1 x XLR 3-Pin Male Output 2 x 1/4″ Input 1 x 2RCA Input 1 x speakON Input 1 x speakON Output 1 x 1/4″ Aux Output |
USB | 1 x USB Type-B |
Crossover | 220 Hz |
Filters | High-Pass: 20 Hz to 1 kHz |
Dynamic Processing | Soft Limiter |
Max Sample Rate/Resolution | 48 kHz / 24-Bit |
Construction Material | Metal Grille, Polypropylene |
Certifications | CE, as per Manufacturer |
Dimensions | 24.5 x 15.7 x 18.1″ / 62.3 x 40.0 x 46.0 cm |
Weight | 53.8 lb / 24.4 kg |
