System
Frequency response |
65 Hz – 14 kHz ±3 dB
50 Hz – 16 kHz -10 dB |
Nominal dispersion |
100° H @ -6 dB points |
Maximum SPL |
118 dB |
Crossover type |
2 way, active |
Transducers |
1 x 8″ (208 mm) LF driver
6 x 2″ (54.2 mm) HF drivers |
Limiter |
Independent HF, LF |
Amplifier
Maximum output power* |
600 W |
Type |
LF: Class-D
HF: Class AB |
Protection |
Short circuit, open circuit, thermal |
Amplifier channels |
2 |

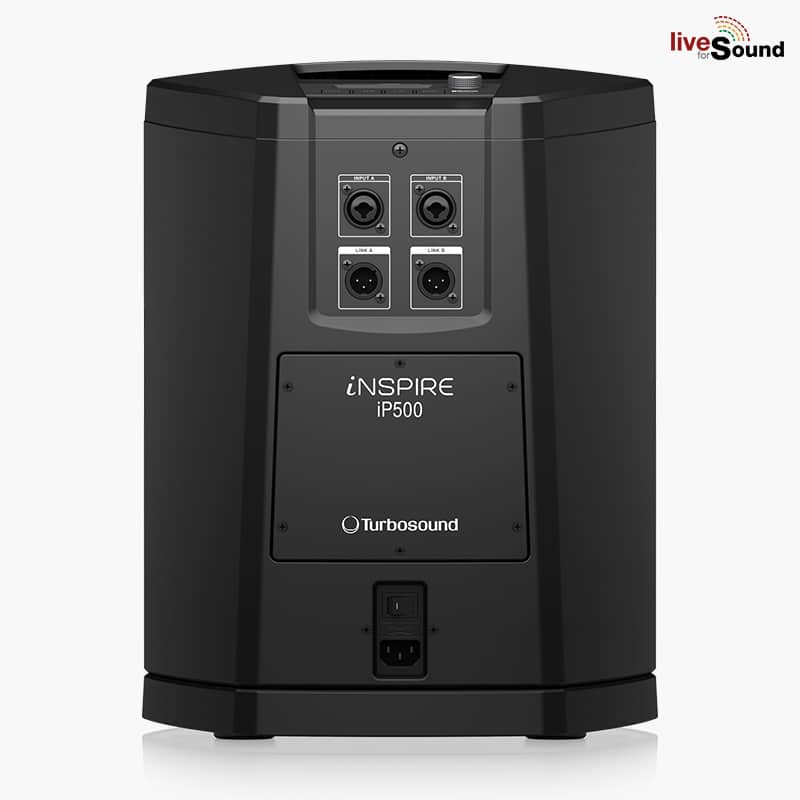

Connectors
Input A / B |
2 x combo jack / XLR |
Sensitivity |
4 dBu |
Input impedance |
16 kO unbalanced, 33 kO balanced |
Maximum input level |
+22 dBu |
Link output |
XLR |
Mains supply |
IEC mains connector with integrated power switch |
Controls
Hardware |
Rotary push-encoder |
Software |
iOS interface via Bluetooth |
User DSP Functions
Factory EQ presets |
Positioning, sound mode |
Display |
LCD 128 x 32, blue, backlit |
Equalisation |
Bass, middle and treble |
Protection |
Lock-out function for all settings |
Bluetooth Wireless Technology
Frequency range |
2402 MHz ~ 2480 MHz |
Channel number |
79 |
Version |
Bluetooth 4.0 dual mode |
Output |
8 dBM |
Compatibility |
Supports A2DP 1.2 profi le |
Maximum communication range |
30 m (without interference) |
Connectivity |
Master-slave: stereo pairing link |
Power Supply
Power consumption |
80 W @ 1/8 max power |
Voltage (fuses) |
|
Enclosure
Dimensions (H x W x D) |
2006 x 321 x 400 mm (79.0 x12.6 x 15.7″) |
Base |
416 x 321 x 400 mm (16.4 x 12.6 x 15.7″) |
Tower |
918 x 132 x 72 mm(36.1 x 5.2 x 2.8″) |
Net weight |
15.1 kg (33.2 lbs) |
Construction, base |
Engineering plastic (GXPP) |
Construction, tower |
Engineering plastic (ABS) |
Finish |
Semi matt black paint |
Grille |
Powder coated perforated steel |
