AVer VC520 PRO2 ชุดไมโครโฟนพร้อมกล้องและลำโพงสำหรับวิดีโอคอนเฟอร์เรนซ์
66,000฿

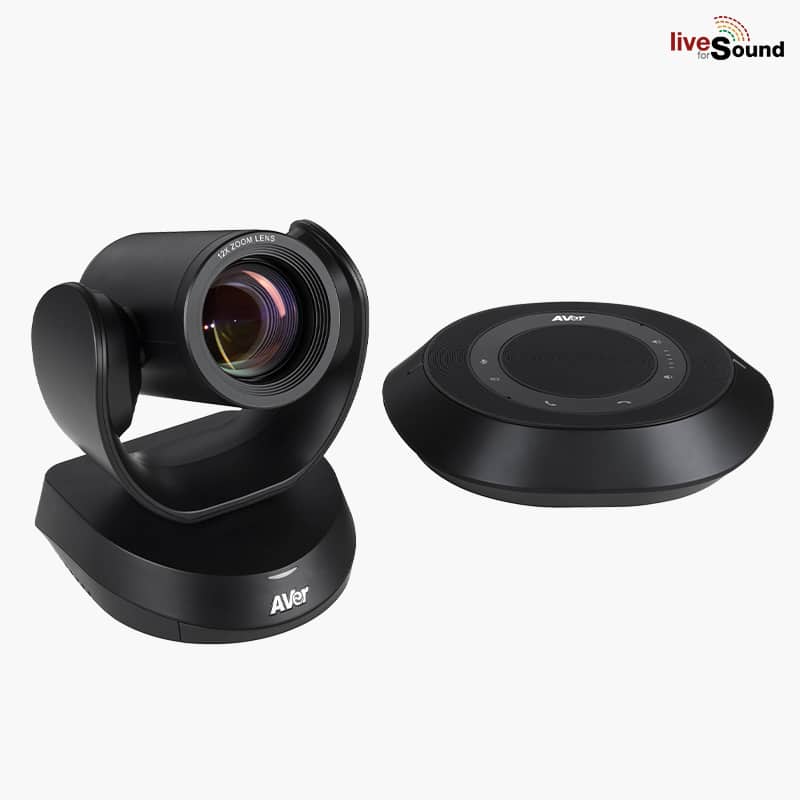

ประกอบด้วย VC520 Pro2 Camera จำนวน 1 ตัว / VC520 Pro Speakerphone จำนวน 1 ตัว เหมาะสำหรับห้องประชุมขนาดเล็ก
AVER VC520 PRO2 ชุดไมโครโฟนพร้อมกล้องและลำโพงสำหรับวิดีโอคอนเฟอร์เรนซ์
เป็นระบบการประชุมระดับผู้เชี่ยวชาญ มาพร้อมกับการซูมรวม 24 เท่า, AVer SmartFrame ขั้นสูง, การสตรีมวิดีโอ IP, การติดตั้ง USB เพียงตัวเดียว และโซลูชันสปีกเกอร์โฟนแบบขยาย VC520 Pro2 มอบประสบการณ์การประชุมทางวิดีโอที่พิเศษสุดให้กับคุณ
VC520 Pro2 Microsoft Teams Rooms Edition
ช่วยให้คุณเริ่มการประชุมได้ทันทีด้วยปุ่ม Microsoft Teams* และไฟสถานะ LED ในตัว เพียงแตะปุ่มเพื่อเข้าประชุมและตรวจสอบสถานะ นอกจากนี้คุณยังสามารถเพลิดเพลินกับประสบการณ์เสียงที่คมชัดตลอดเวลาผ่านไมโครโฟนขยายสองตัวที่มาพร้อมกับระบบ
Get Perfect Audio with an Extended Speakerphone
มีฟังก์ชันเดซี่เชน VC520 Pro2 รองรับสปีกเกอร์โฟนขยายได้สูงสุดสองตัวหรืออาร์เรย์ไมโครโฟนฟูลดูเพล็กซ์ สปีกเกอร์โฟนอันล้ำสมัยทำให้ VC520 Pro2 เป็นตัวเลือกที่ดีสำหรับห้องประชุมขนาดกลางถึงขนาดใหญ่
Support Video and Audio with One USB Cable
การติดตั้ง VC520 Pro2 นั้นง่ายมาก สิ่งที่คุณต้องมีเพื่อตั้งค่าการโทรคือสาย USB เส้นเดียว การเชื่อมต่อโดยตรงนี้ไม่เพียงแต่ช่วยประหยัดเวลา แต่ยังช่วยให้ตารางการประชุมของคุณเป็นระเบียบ ลดความซับซ้อนของกระบวนการตั้งค่าและลดต้นทุนการติดตั้งด้วย

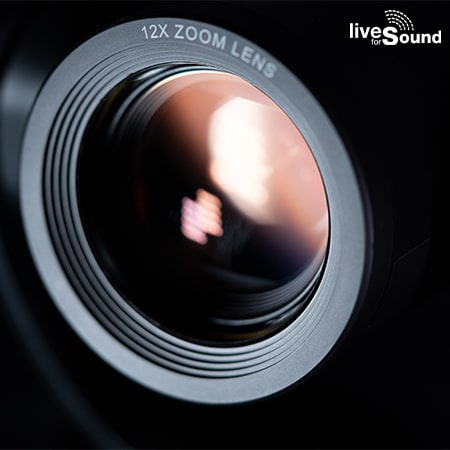

Spot Every Detail with an 24X* Total Zoom
การซูมรวม 24 เท่า ด้วยคุณภาพสูงสุด 1080p, 60fps
Improve Meeting Safety & Efficiency with SmartFrame
การจัดกรอบอัตโนมัติ สามารถตรวจจับและจัดเฟรมผู้เข้าร่วมการประชุมได้ ช่วยเพิ่มประสิทธิภาพการประชุมได้อย่างมาก
Livestream Videos Anytime, Anywhere
รองรับ H.264 RTSP/RTMP ทำให้ VC520 Pro2 นำเสนอการสตรีมสดที่เสถียร ในรูปแบบ 1080p ที่ 60pfs ส่งมอบข้อมูลโดยตรงแก่ผู้ชม
Keep Natural Clarity in Any Light Conditions
ควบคุมค่าแสงของพิกเซลได้อย่างง่ายดายและแสดงความคมชัดคงที่บนหน้าจอ
คุณสมบัติ:
- สำหรับห้องประชุมขนาดกลางถึงขนาดใหญ่
- ภาพวิดีโอ 1080p60 ผ่าน USB 3.1
- สปีกเกอร์โฟนช่วง 15′
- AVer SmartFrame, Sony WDR, การสตรีม IP
- ซูมออปติคัล 12x, ซูมรวม 18x
- การจัดกรอบอัตโนมัติ, โฟกัสอัตโนมัติ, ย้อนแสง
- มุมมอง 84° สูงสุด 60′
- RS-232, ไฟแสดงสถานะ
- รองรับ Chrome/macOS/Windows
Camera | |
Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions | |
Resolution: | (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps |
SmartFrame for automatic FOV adjustment to fit all participants | |
True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions | |
Zoom: | 18X total zoom (12X optical zoom) |
Wide field of view (DFOV): | 82° |
Lens focal length: | 3.9 mm (wide) ~ 47.3 mm (tele) |
Lens F#: | 1.8 (wide) ~ 2.8 (tele) |
Mirror, Flip, AE, white balance: | aut o, manual override via PTZApp |
Minimum focus distance: | 1.5 m |
Standard tripod screw holes and Kensington slot | |
Video Format | |
YUV, MJPEG, H.264 | |
Network video compression format: | H.264 |
Network protocols: | RTSP, RTMP |
Audio Format | |
AAC-LC | |
Network protocol: | RTSP, RTMP |

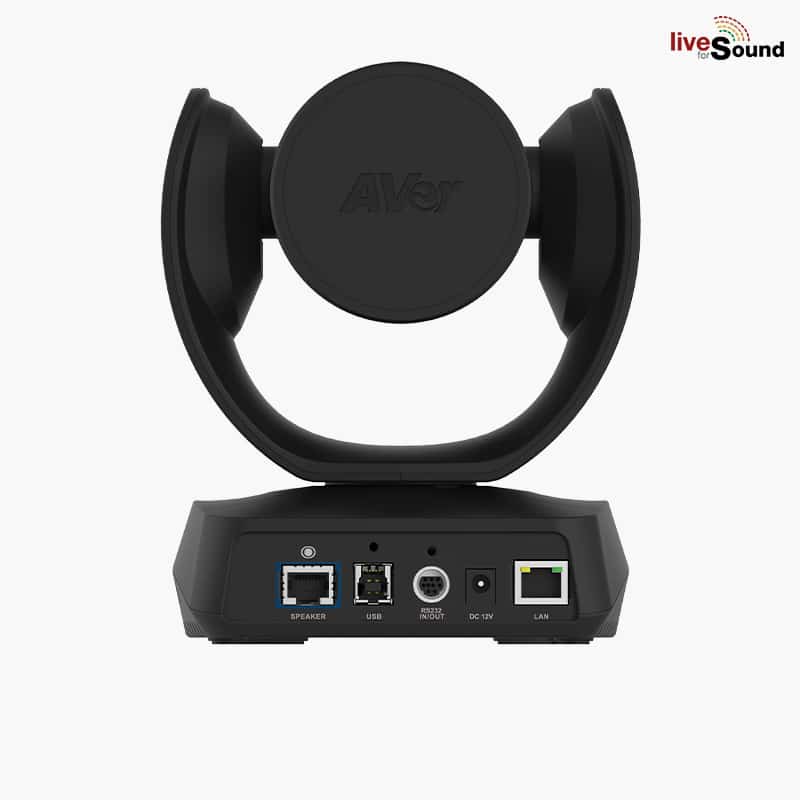

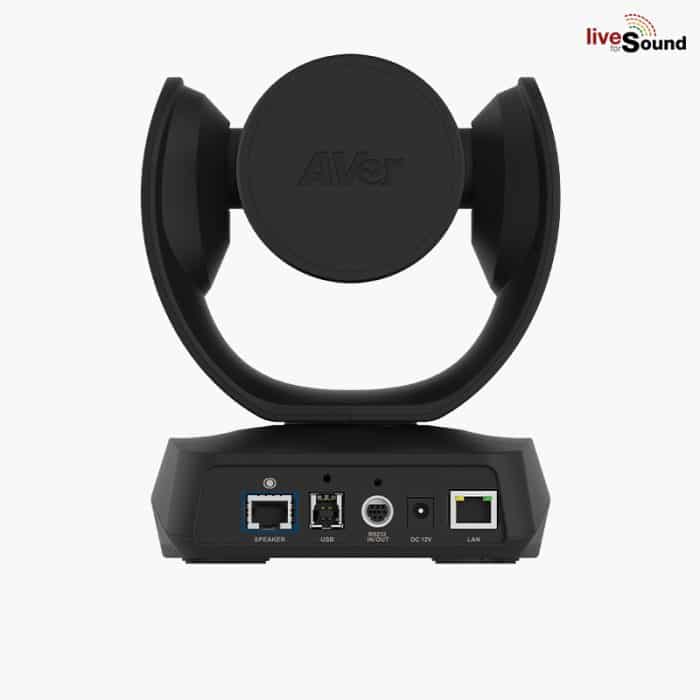

Connectivity | |
12V/5A power adaptor | |
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain) | |
USB 3.1 Type-B connector | |
IP (RJ45) | |
Control | |
IR remote control | |
VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command) | |
Remote side: | VISCA over IP, IP (RJ45) |
UVC/UAC plug-and-play | |
WebUI: | Browser IP access via Chrome (does not support Internet Explorer) |
PTZApp | |
System Requirements | |
Windows® 7/10 | |
Mac OS X 10.13 or higher | |
Google Chromebook version 76.0.3809.102 or later | |
Android 6 or higher | |
Web page browser requirement | |
Chrome: | version 76.x or above |
Firefox: | version 69 or above |
IE: | Not support |
Free Applications for Meeting Collaboration (Windows® and Mac)EZManager: Camera Central Management software | |
Remotely group FW/SW upgrades, control the camera, and configure settings | |
PTZApp | |
Upgrade firmware automatically or manually | |
Control camera | |
Set parameters and adjust camera image | |
Diagnose operating status | |
View live video | |
EZLive | |
Real-time streaming / annotating / snapshots / video recordin | |
Dimensions | |
Package dimensions: | 259 x 259 x 349 mm |
Package weight: | 5.4 kg |
Camera: | 142.7 x 153 x 182 mm/1.45 kg |
Speakerphone: | 220 x 181.5 x 49.5 mm/0.85 kg |
Remote control: | 200 x 50 x 21 mm/0.09 kg |
Optional Accessories | |
Mini DIN9 to RS232 adapter | |
Expansion Speakerphone | |
Expansion Microphone | |
Foldable TV mount | |
Motorized Pan & Tilt Movement | |
Pan: | ±170° |
Tilt: | +90° (up) -30° (down) |
10 camera presets (through remote control) | |
Fast and quiet pan & tilt movement | |

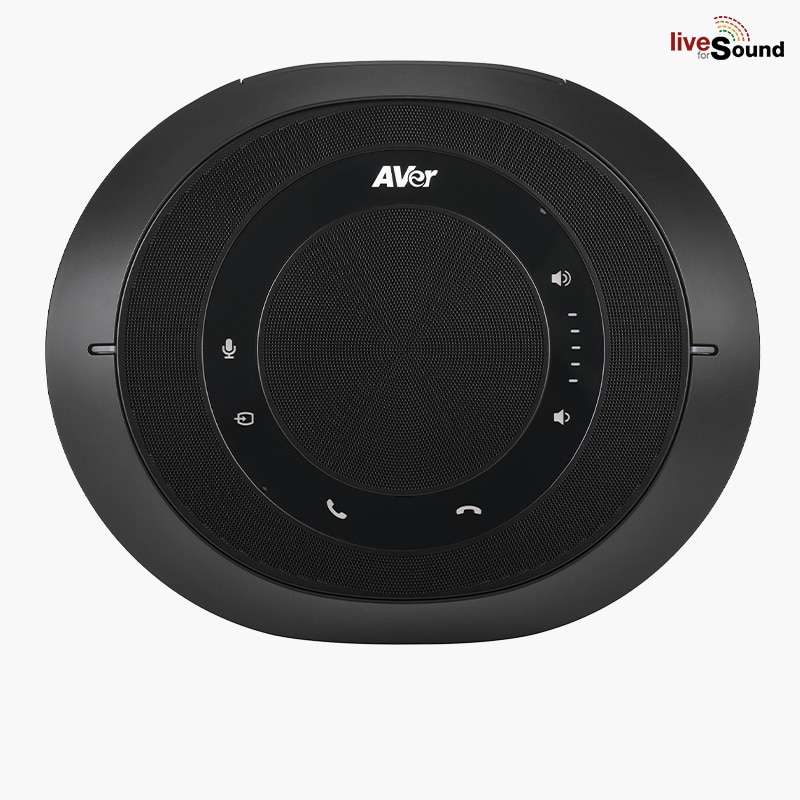

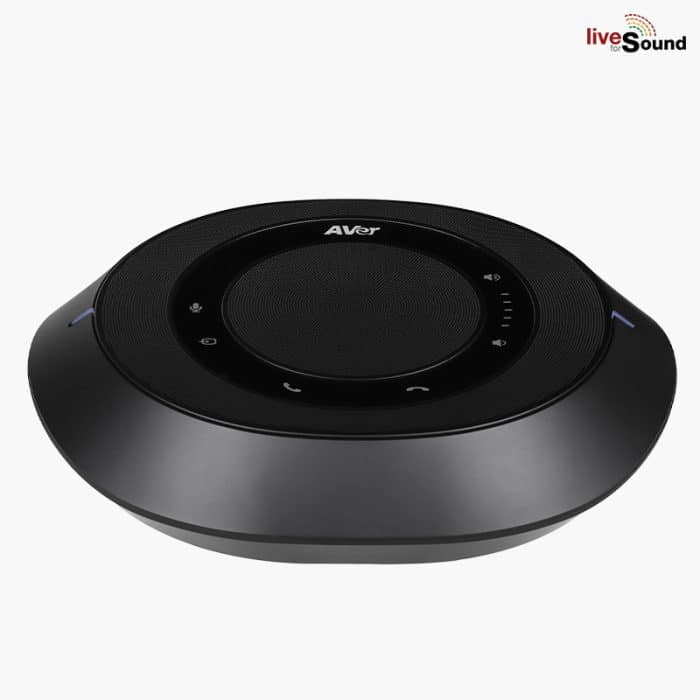

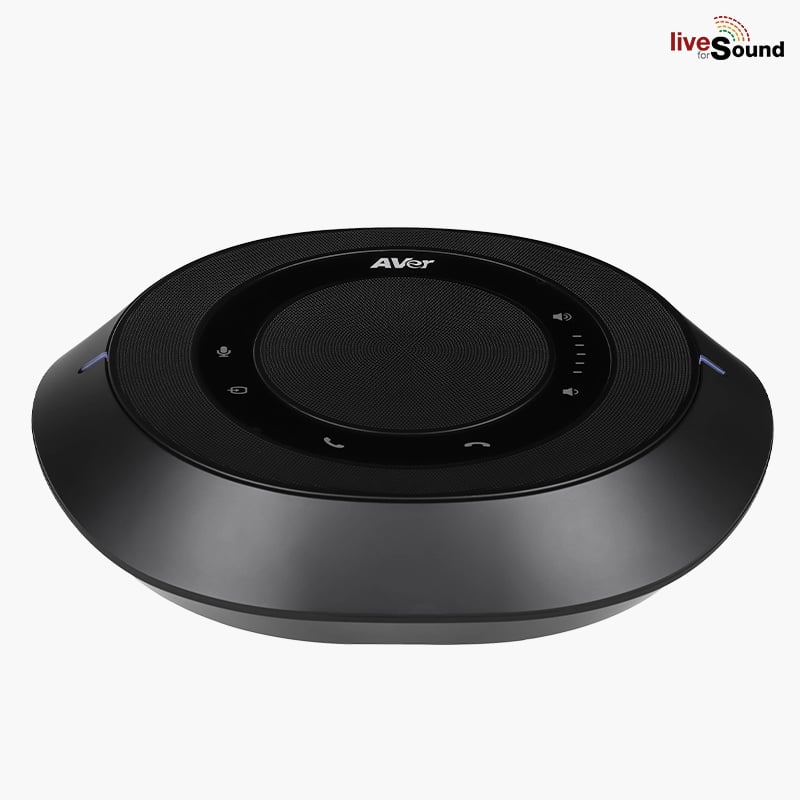

Speakerphone | |
Full duplex microphone array with echo cancellation | |
Advanced noise suppression | |
Dual-microphone array | |
3.5 mm phone-in jack | |
3.5 mm line out | |
Speaker volume: | Adjustable to 90dB SPL at 0.5 m |
Touch controls for volume down/up, mute, phone input, call, and hang-up | |
Bridge phone-in and USB into one call | |
Security: | Kensington slot |
LAN | |
10/100/1000 Mbps | |
USB | |
3.1 Gen 1 Type-B, backward compatible with USB 2.0 | |
UVC (USB video class) 1.1 | |
UAC (USB audio class) 1.0 | |
Mount | |
Camera wall-mount bracket included | |
Optional foldable TV mount | |
Hardware Specs | |
3.2 GHz Intel® Core™ i5-4460 Processor or higher | |
4 GB RAM or more | |
USB 3.1 port, backward compatible with USB 2.0 port | |
Power Supply | |
AC 100V ~ 240V, 50/60 Hz | |
Consumption: | 12V, 5A |
Environmental Data | |
Operation temperature: | 0°C ~ 40°C |
Operation humidity: | 20% ~ 80% |
Storage temperature: | -20°C ~ 60°C |
Storage humidity: | 20% ~ 80% |
- ขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
Brand |
AVER |
---|---|
Speakers Configuration |
full-duplex with echo cancellation and noise suppression |
Power Handling |
6W |
Maximum Peak SPL |
90dB SPL at 0.5 m |
Microphone Configuration |
Dual-omnidirectional microphone array |
Field of View (FOV) |
84.5° (Diagonal), 76° (Horizontal), 48° (Vertical) |
Image Sensor |
Sony super-low-light 2M pixel sensor |
Focus Distance |
Minimum focus distance of 1.5 m |
Lens |
24X total zoom (12X optical) with 3.9 mm to 47.3 mm focal length |
Positioning |
Motorized pan: ±170°, tilt: +90° (up) to -30° (down) |
Video Resolutions |
Supports multiple resolutions up to 1080p |
USB |
USB 3.1 Type-B |
Network |
RJ45 ,RTMP protocols ,Supports RTSP |
Analog Audio |
3.5 mm line ou |
Power Source |
100-240V AC, 50-60Hz |
Height |
Camera: 182 mm, Speakerphone: 49.5 mm |
Width |
Camera: 153 mm, Speakerphone: 220 mm |
Depth |
Camera: 142.7 mm, Speakerphone: 181.5 mm |
Weight |
Camera: 1.45 kg, Speakerphone: 0.85 kg |
