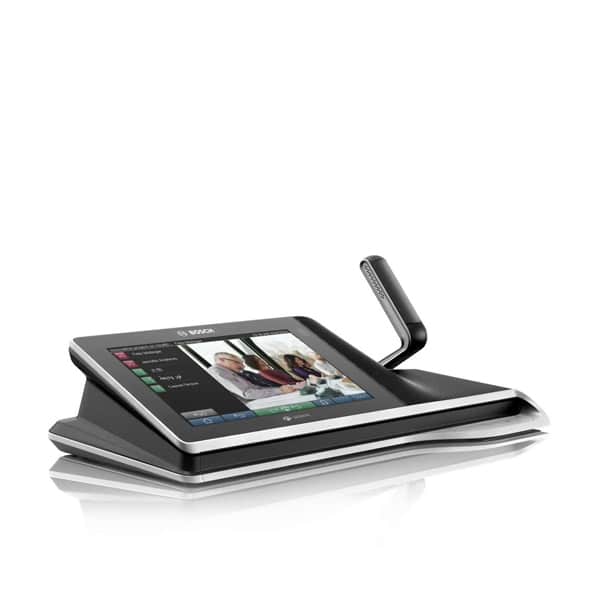

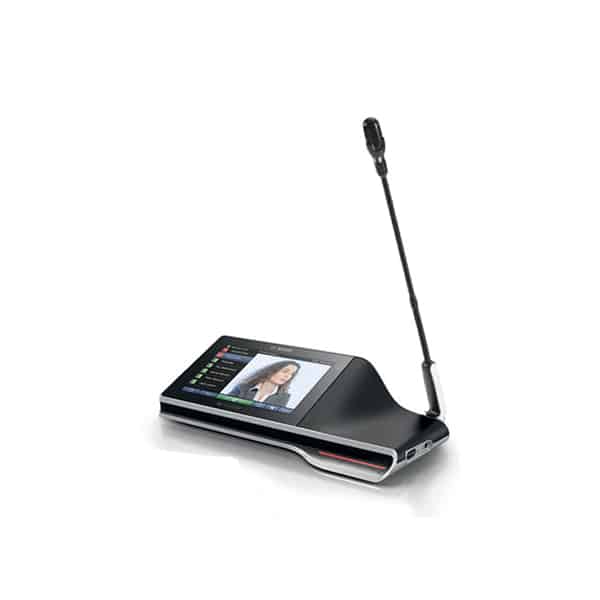

BOSCH DCNM-MMD2
BOSCH DCNM-MMD2 ไมโครโฟนประชุมหน้าจอสัมผัส ขนาด 7 นิ้ว สามารถเข้าใช้งานวิดีโอ อินเตอร์เน็ต รวมถึงมัลติมีเดียในการประชุมได้ ก้านไมโครโฟนสามารถถอดได้ สามารถเพิ่ม Software ต่างๆ ในชุดไมโครโฟนประชุมได้
คุณสมบัติ:
- หน้าจอสัมผัสแบบ Capacitive ขนาด 7 นิ้ว
- ไมโครโฟนแบบถอดได้
- มีลำโพงในตัว
- สามารถเข้าใช้งานวิดีโอ เนื้อหาการประชุม และอินเทอร์เน็ต
- เพิ่มฟังก์ชันการทำงานผ่านซอฟต์แวร์และแอพจากผู้พัฒนารายอื่น/ที่พัฒนาขึ้นเอง

Specification
Screen size | 7 inch, 1024 x 600 pixels |
Screen type | Capacitive multi touch |
Operating system | Android 4.03 |
Supply voltage | 48 Vdc IEEE 802.3 at Type 2 |
Power consumption | 12.5 W |
Frequency response | 100 Hz – 20 kHz(-3 dB at nominal level) |
THD at nominal level | < 0.01 % |
Dynamic range | 96 dB (14‑110 dBSPL) |
Signal-to-noise ratio | 66 dB with respect to nominal level headroom 30 dB |
Nominal microphone input | 80 dB according IEC60914 |
Maximum microphone input | 110 dB according IEC60914 |
External microphone nominal input | -38 dBV |
External microphone maximum input | -25 dBV |
Loudspeaker nominal output | 72 dB SPL @ 0.5 m |
Loudspeaker maximum output | 90 dB SPL |
Headphone nominal output | -3 dBV |
Headphone maximum output | 0 dBV |
Mounting | Tabletop |
Dimensions (H x W x D) | 75 x 312 x 175 mm(2.95 X 12.28 x 6.89 in) |
Weight | 1.85 kg (4.078 lb) |
Color | Traffic black RAL 9017Pearl light grey RAL 9022 |
Operating temperature | 0 ºC to +35 ºC(32 ºF to +113 ºF) |
Storage temperature | -20 ºC to +70 ºC(-4 ºF to +158 ºF) |
Relative humidity | < 95 %, > 5% |
