KLARK TEKNIK DN32-DANTE การ์ดเสริมสำหรับมิกเซอร์ดิจิตอล BEHRINGER และ MIDAS

22,500฿

เป็นการ์ด DANTE จำนวนช่องสัญญาณ 32 x 32 ช่อง

รหัสสินค้า: KT-DN32DANTE หมวดหมู่: ป้ายกำกับ: ,
รายละเอียดเพิ่มเติม

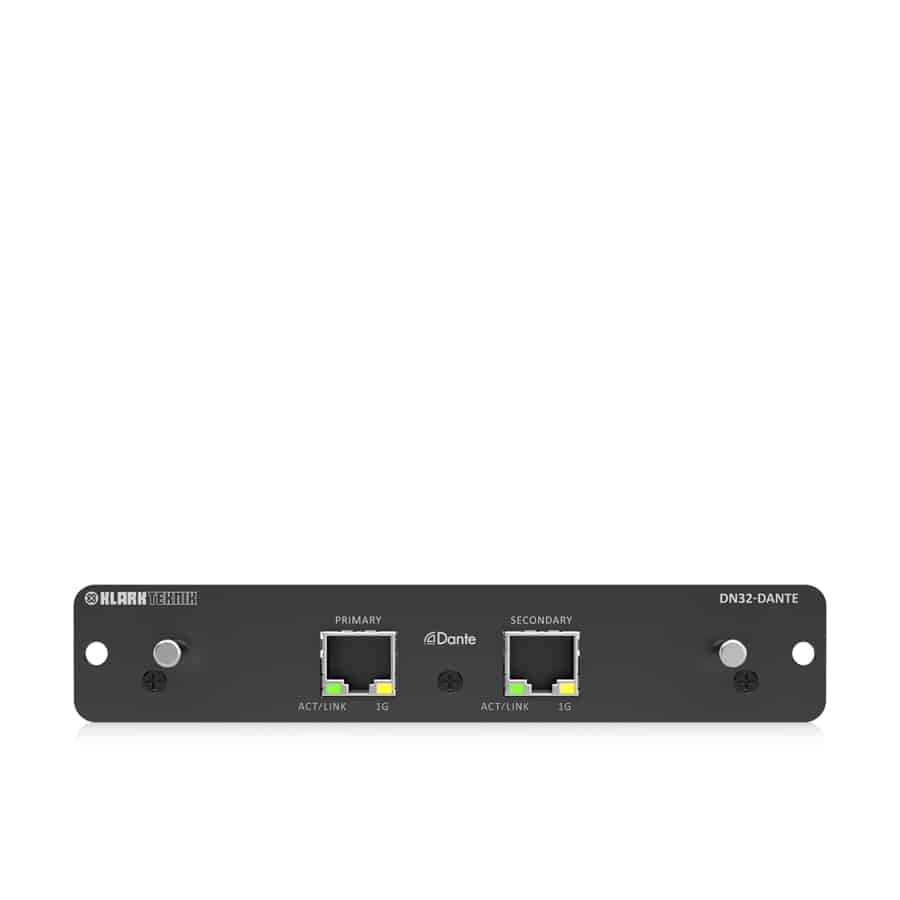

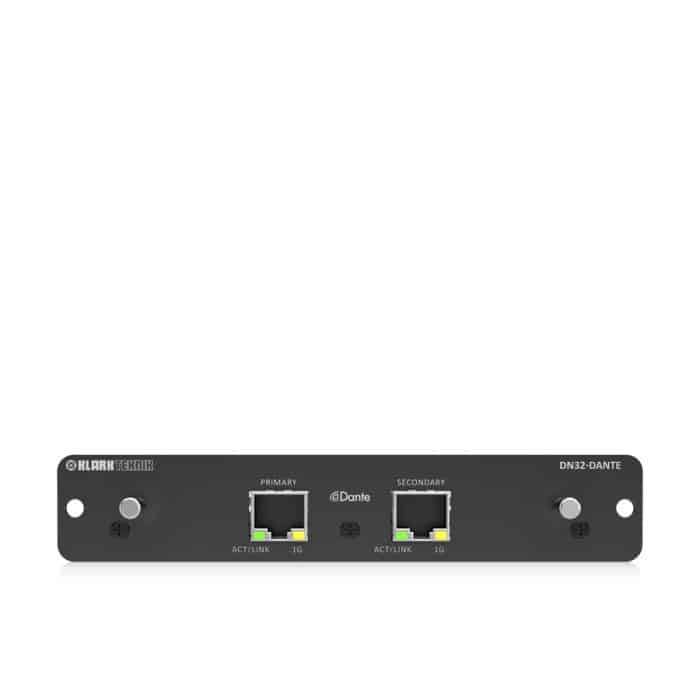

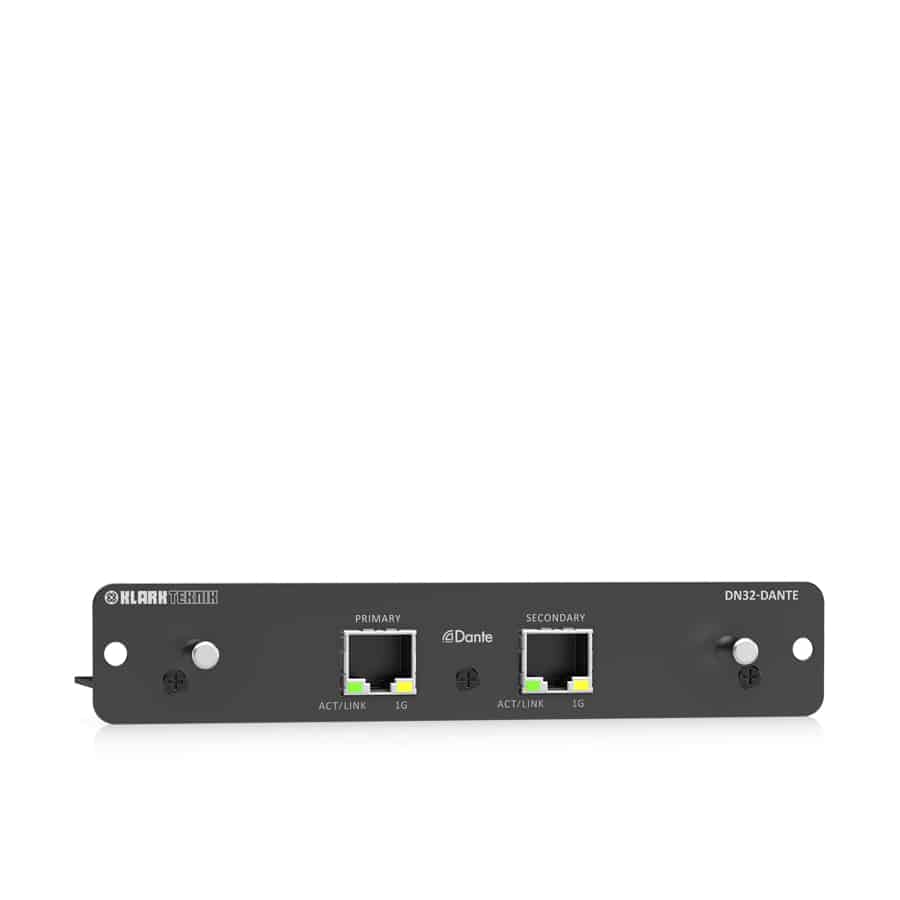

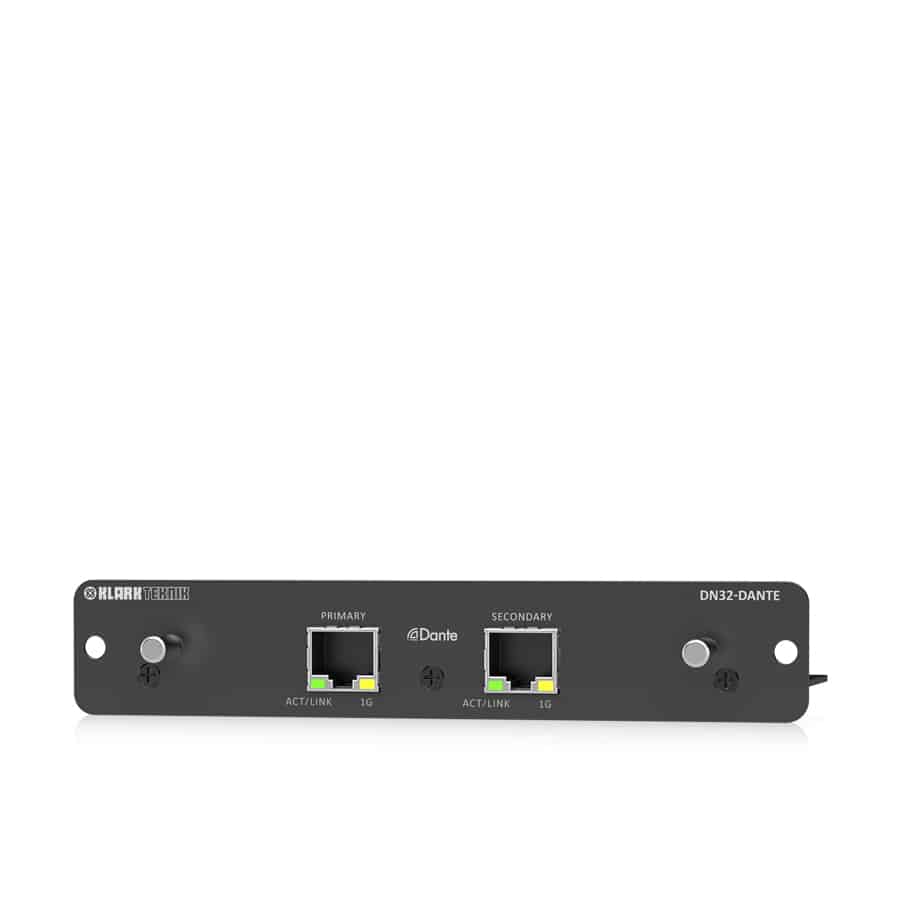

Klark Teknik DN32-DANTE

DN32-DANTE ให้ช่องเสียงแบบสองทิศทางสูงสุด 32 ช่องในเครือข่ายไปยังคอนโซลมิกซ์ Midas M32 หรือ Behringer X32 ของคุณเพื่อการผสานรวมที่ราบรื่นกับเครือข่าย IP ที่เปิดใช้งาน Dante ตามมาตรฐานเทคโนโลยีสารสนเทศ Dante ให้บริการเครือข่ายสื่อดิจิทัลแบบหลายช่องสัญญาณแบบไม่บีบอัด

คุณสมบัติ:

  • Audinate Dante* expansion module for Midas and Behringer digital consoles
  • Up to 32 bidirectional channels @ 48 kHz
  • Enables multichannel recording and playback via Dante Virtual Soundcard* (PC or Mac* computer)
  • Primary and secondary Ethernet interfaces for dual-redundant Dante networking
  • Operates from internal Dante network Precision Time Protocol (PTP) clock
  • Optional Dante Controller software for remote configuration (PC or Mac* computer)
  • LED indicators monitor network activity and speed
สเปค
Connectors 2 x RJ45, Gigabit Ethernet 1 GBit/s, primary and secondary
Inputs and Outputs Input / Output Channels: 32 / 32
Sample Rates 44.1 / 48 kHz
Bit Depth 24-bit PCM
Clock Clock Synchronization, Onboard High-Quality Dante Network Clock, Based Upon IEEE1588 PTP (Precision Time Control): Console “Local” or Dante network clock “DN32-DANTE”
Latency System Audio Latency: 0.25, 0.5, 1.0, or 5.0 ms (depending on Dante Controller network configuration)
Gigabit Ethernet Port Dual-input Gigabit Ethernet Ports: Ethernet Switch mode or Dante Redundancy mode
Indicators Ethernet Link, LED Indicator in Socket: 2 LED, green – flashes with network activity
1 Gbit/s Ethernet Link: 2 LED, amber – LED indicator in socket
System Requirements Dante Controller App

PC Hardware (Minimum)
CPU: 1 GHz
RAM: 512 MB
Display: 1024 x 768
Wired Ethernet interface

Windows Applications (ASIO and WDM Audio Device Interface)
XP SP3 32-bit
Win7 32-/64-bit
Win8 32-/64-bit

Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9

Dante Virtual Soundcard

PC Hardware (Minimum)
CPU: Dual Core
RAM: 1 GB
Wired Ethernet interface, 1 GB/s required for channel counts higher than 32 x 32 @ 48 kHz

Windows Applications (ASIO and WDM Audio Device Interface)
Win7 32-/64-bit
Win8 32-/64-bit

Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9

Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
ดาวน์โหลด

Data Sheet
