BOSCH DCNM-DSL
BOSCH DCNM-DSL DICENTIS incorporates several standardized technologies that have been combined to create an open platform. Complete system solutions can be created by simply integrating compatible products. This makes DICENTIS extremely scalable, enabling it to evolve with the growing needs of meeting and conference facilities. At its heart, the DICENTIS Conference System makes use of the unique IP based OMNEO media networking architecture, developed by Bosch.

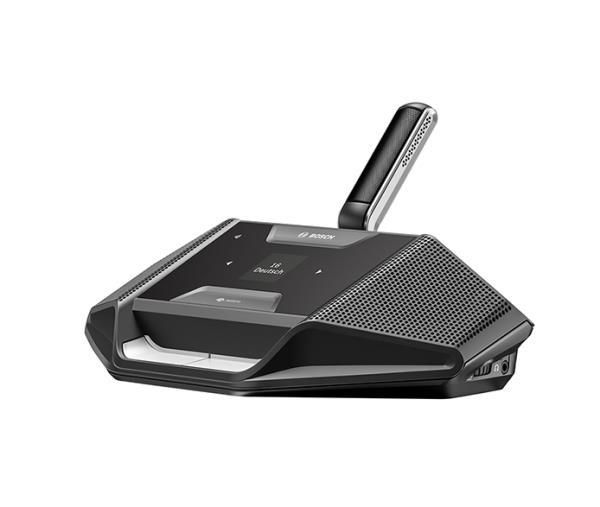

The elegantly designed DICENTIS Discussion devices enable participants to speak, register a request to speak and listen to discussion. With the DICENTIS Discussion device with language selector, delegates can conveniently listen to the speaker in their preferred language. Language selection is straightforward and is automatically activated when headphones are connected to the device. The delegate can then scroll through the available languages by pressing the illuminated touch buttons. Available languages are displayed in native characters to enhance readability. Dual-use and fast participant recognition (via NFC tag identification) can be conveniently enabled by the use of additional software licenses.
คุณสมบัติ:
- Single use and chairperson can be configured via the PC configuration software application
- 1.44 inch screen for displaying: • Language selection in original characters
- Language selection in ISO abbreviation form
- Language numbers
- Built in Near Field Communication (NFC) contactless tag reader
- Additional functionality by use of software license only: • Identification functionality
- Select language (license included)
- Dual use
- Audio mute button
- Supports star and loop-through connection

Specifications
Supply voltage | 48 VDC |
Power consumption | 3.6 W |
Frequency response | 100 Hz to 20 kHz (-3 dB at nominal level) |
THD at nominal level | < 0.1 % |
Dynamic range | > 90 dB |
Signal‑to‑noise ratio | > 90 dB |
Nominal microphone input | 80 dB SPL according to ISO22259 (IEC60914) |
Maximum microphone input | 110 dB SPL according to ISO22259 (IEC60914) |
Loudspeaker nominal output | 72 dB SPL at 0.5 m |
Loudspeaker maximum output | 87 dB SPL |
Headphone nominal output | 0 dBV |
Headphone maximum output | 3 dBV |
Headphone load impedance | > 32 ohm <1k ohm |
Headphone output power | 65 mW |
Screen size | 36.58 mm (1.44 in) |
Screen type | LCD |
Supported contactless NFC tag | According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps). |
Mounting | Tabletop |
Dimensions (H x W x D) without microphone | 72 x 259 x 139 mm(2.8 x 10.2 x 5.5 in) |
Color (top and base) | Traffic black (RAL 9017) |
